Description
CKD 4KB310-10-AC200V — Pilot Operated 5-Port Selex Valve 4KB3 Series, genuine CKD product.
Overview
The 4KB3 belongs to CKD's Selex family of pilot-operated 5-port solenoid valves and is a larger body size intended for higher air flow. The solenoid operates a pilot that drives the main spool, directing supply air to either side of a cylinder and exhausting the opposite side. It suits bigger cylinders and actuators on presses, conveyors and handling equipment.
Key Features
- Larger body size for higher flow requirements
- Spool valve with internal pilot operation
- Manual override for commissioning without electrical signal
- Available for individual or manifold mounting
Specifications
| Part No. |
Rated Voltage Fluctuation Range |
Wire Connection Method |
Max. Operating Pressure (MPa) |
Rated Voltage (V) |
Lubrication |
Enclosure Protection |
Cross-Sectional Area (㎟) |
Ambient Temp. (℃) |
Holding Current (A) |
No. of Ports |
Starting Current (A) |
Manual Operation |
| 4KB310-10-AC200V |
±10% |
Grommet lead wire |
0.7 |
AC200(50/60Hz) |
Not required |
Dustproof |
28 |
-5～50 |
50Hz：0.01460Hz：0.011 |
5 |
50Hz：0.02360Hz：0.021 |
Non-locking manual device |
How to Order
Confirm the solenoid configuration, port size and coil voltage, and whether a manifold or sub-plate is required. Please confirm the full part number and options against the CKD catalog; contact us if you need help identifying the right model.

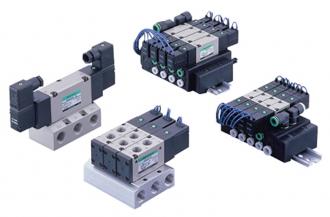

Product image is representative of the CKD series; appearance varies by size and model.
About CKD
CKD Corporation is a Japanese manufacturer of pneumatic and fluid control components, including solenoid valves, process valves, air cylinders, air preparation units (FRL), fittings and flow control devices.
Ordering & Shipping
- Genuine CKD product sourced through Korean distribution
- Ships worldwide from South Korea by FedEx International Priority Express
- Lead time varies by model; please inquire for exact delivery
- Import duties and taxes are payable by the recipient
- Bulk and trade pricing available on request
