Description
CKD B7019 — Filter Regulator B7019 Series, genuine CKD product.
Overview
The CKD B7019 Series filter regulator combines particle filtration and pressure regulation in one compact body. Incoming air passes through a filter element and bowl that collect dirt and water, then a diaphragm-type regulator holds the outlet at the set pressure. It is used at the point of use ahead of valves, cylinders and air tools where panel space or piping length is limited.
Key Features
- Two functions in one body to save space and fittings
- Replaceable filter element and drain for condensate
- Knob adjustment for setting secondary pressure
- Suited for point-of-use installation near equipment
Specifications
| Part No. |
Ambient and Fluid Temp. (℃) |
Max. Flow (L) |
Filtration Rating (㎛) |
Unit Type |
Equipment Configuration |
Max. Operating Pressure (MPa) |
Drain Discharge |
Port Size |
Thread Type |
| B7019-1C |
5～65 |
500 |
5 |
|
Filter + regulator |
1.0 |
Tire valve |
Rc1/8 |
Rc |
| B7019-2C |
5～65 |
900 |
5 |
F.R unit 7000 series |
Filter + regulator |
1.0 |
Tire valve |
Rc1/4 |
Rc |
How to Order
Check the port size, filtration rating, set-pressure range and whether a gauge is required. Please confirm the full part number and options against the CKD catalog; contact us if you need help identifying the right model.

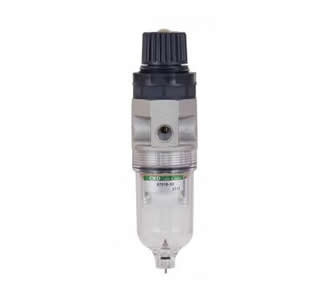

Product image is representative of the CKD series; appearance varies by size and model.
About CKD
CKD Corporation is a Japanese manufacturer of pneumatic and fluid control components, including solenoid valves, process valves, air cylinders, air preparation units (FRL), fittings and flow control devices.
Ordering & Shipping
- Genuine CKD product sourced through Korean distribution
- Ships worldwide from South Korea by FedEx International Priority Express
- Lead time varies by model; please inquire for exact delivery
- Import duties and taxes are payable by the recipient
- Bulk and trade pricing available on request
