Description
CKD AG31-02-2-AC — AG Direct Acting 3-Port Valve, genuine CKD product.
Overview
CKD's AG Series is a direct-acting 3-port solenoid valve that pressurizes and exhausts a single line, making it suitable for single-acting cylinders, air blow and pilot signal circuits. With the solenoid acting directly on the valve seat, it operates from zero pressure without needing a pilot supply. It is found on small machines, blowing stations and pilot control panels.
Key Features
- Direct-acting poppet construction operates from zero pressure
- 3-port configuration for single-acting actuators
- Compact body with threaded ports
- AC and DC coil choices
Specifications
| Part No. |
Thread Type |
Rated Voltage (V) |
External Dimensions (mm) |
Orifice (mm) |
Port Size (Rc) |
Operation Type |
Class |
Coil Housing |
No. of Ports |
| AG31-02-2-AC100V |
Rc |
AC100 |
50×50×15×79.6×92.6 |
(TOP)1.5、(BODY)1.5 |
1/4 |
Direct-acting type |
Direct-acting universal |
Grommet lead wire |
3 |
| AG31-02-2-AC200V |
Rc |
AC200 |
50×50×15×79.6×92.6 |
(TOP)2.0、(BODY)2.0 |
1/4 |
Direct-acting type |
Direct-acting universal |
Grommet lead wire |
3 |
How to Order
Confirm normally closed or normally open function, port size, coil voltage and maximum working pressure. Please confirm the full part number and options against the CKD catalog; contact us if you need help identifying the right model.

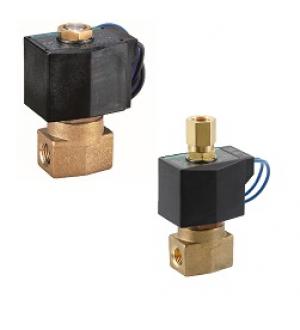

Product image is representative of the CKD series; appearance varies by size and model.
About CKD
CKD Corporation is a Japanese manufacturer of pneumatic and fluid control components, including solenoid valves, process valves, air cylinders, air preparation units (FRL), fittings and flow control devices.
Ordering & Shipping
- Genuine CKD product sourced through Korean distribution
- Ships worldwide from South Korea by FedEx International Priority Express
- Lead time varies by model; please inquire for exact delivery
- Import duties and taxes are payable by the recipient
- Bulk and trade pricing available on request
