Description
CKD CMK2-00-20 — Tight Cylinder CMK2 Series (CMK2-00-), genuine CKD product.
Overview
The CKD CMK2 is a compact tie-rod-free pneumatic cylinder with a short overall length, often called a tight cylinder. Compressed air acting on the piston extends and retracts the rod to push, lift or clamp workpieces. The CMK2-00 code denotes the basic mounting style, and the series is used widely in assembly machines, jigs and light-duty automation.
Key Features
- Short overall length for confined machine spaces
- Double-acting operation with air at both ports
- Multiple mounting styles available within the series
- Options for cylinder switches to sense piston position
Specifications
| Part No. |
Cylinder Bore (Ømm) |
Stroke (mm) |
Operation Type |
Control Voltage |
| CMK2-00-20-25 |
20 |
25 |
Double acting type |
Basic type |
| CMK2-00-20-50 |
20 |
50 |
Double acting type |
Basic type |
| CMK2-00-20-75 |
20 |
75 |
Double acting type |
Basic type |
How to Order
Confirm bore size, stroke length, mounting style and whether a switch-ready magnet piston is needed. Please confirm the full part number and options against the CKD catalog; contact us if you need help identifying the right model.

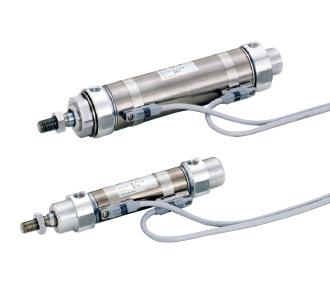

Product image is representative of the CKD series; appearance varies by size and model.
About CKD
CKD Corporation is a Japanese manufacturer of pneumatic and fluid control components, including solenoid valves, process valves, air cylinders, air preparation units (FRL), fittings and flow control devices.
Ordering & Shipping
- Genuine CKD product sourced through Korean distribution
- Ships worldwide from South Korea by FedEx International Priority Express
- Lead time varies by model; please inquire for exact delivery
- Import duties and taxes are payable by the recipient
- Bulk and trade pricing available on request
