Description
CKD PKA-10-27-AC200V — Solenoid Valve for Air, genuine CKD product.
Overview
This CKD PKA solenoid valve is designed for switching compressed air in general pneumatic lines, such as supplying or shutting off air to equipment, blow nozzles or downstream valves. It uses a pilot-operated poppet structure for larger bores while keeping coil power moderate. Applications include air supply shut-off, dust collector cleaning and utility air distribution.
Key Features
- Pilot-operated design for medium to large air bores
- 2-port on/off control of compressed air
- Threaded body ports for line piping
- Multiple coil voltages available
Specifications
| Part No. |
Orifice (mm) |
External Dimensions (mm) |
Rated Voltage (V) |
Operation Type |
Thread Type |
Port Size |
Operating Pressure (MPa) |
Max. Operating Pressure Differential (MPa) |
No. of Ports |
| PKA-10-27-AC200V |
25 |
110×46Φ×175 |
AC200 |
Pilot kick type |
Rc |
RC1 |
0～0.7 |
0.7 |
2 |
How to Order
Specify port size, coil voltage, normally closed or open function and the working pressure range. Please confirm the full part number and options against the CKD catalog; contact us if you need help identifying the right model.

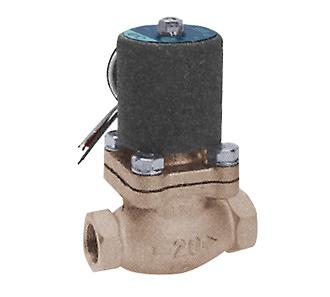

Product image is representative of the CKD series; appearance varies by size and model.
About CKD
CKD Corporation is a Japanese manufacturer of pneumatic and fluid control components, including solenoid valves, process valves, air cylinders, air preparation units (FRL), fittings and flow control devices.
