Description
CKD PKS — Pilot Kick 2-Port Valve for Steam PKS Series, genuine CKD product.
Overview
The PKS Series is a pilot kick 2-port solenoid valve designed for steam service. Its pilot-assisted mechanism lets the valve operate across a wide pressure range, including very low differentials, while heat-resistant seals and coil insulation tolerate elevated fluid temperatures. CKD PKS valves are used on steam lines for heating, sterilizing, cleaning and process equipment.
Key Features
- Designed for steam and high-temperature fluids
- Pilot kick action works at low differential pressure
- Heat-resistant seals and coil insulation class
- Threaded ports for direct piping installation
Specifications
| Part No. |
Ambient Temp. (℃) |
Max. Operating Frequency (cycles/min) |
Material (Gasket) |
Dim. E (mm) |
Operation Type |
Cv Value |
Heat Resistance Class |
Material (Body) |
Orifice (mm) |
Fluid |
Thread Type |
Dim. C (mm) |
Dim. H (mm) |
Rated Voltage (V) |
Apparent Power (VA) |
Operating Pressure Range (MPa) |
Dim. A (mm) |
Mass (kg) |
Dim. D (mm) |
Fluid Temp. (℃) |
Power Consumption (W) |
Port Size (Rc) |
No. of Ports |
Mounting Orientation |
Coil |
Dim. G (Ømm) |
Valve Seat Leakage (cm3/min) |
Withstand Pressure (MPa) |
Dim. B (mm) |
| PKS-04-27-AC100V |
|
|
PTFE material |
|
Pilot kick type |
|
H |
|
|
Steam |
|
29 |
|
AC100(50/60Hz) |
Holding: 30, Starting: 80 |
|
90 |
|
|
|
22 |
|
|
|
Open frame lead wire coil |
|
400 or less (pneumatic 0.05~0.7 (0.5) MPa) |
|
126 |
| PKS-04-27-AC200V |
0～70 |
|
|
23 |
|
4 |
|
Bronze |
|
Steam |
Rc |
29 |
|
|
Holding: 30, Starting: 80 |
|
|
|
88 |
|
22 |
1/2 |
|
|
|
|
|
1.5 (water pressure) |
|
| PKS-06-27-AC100V |
|
60 |
|
26 |
Pilot kick type |
|
|
Bronze |
|
|
|
35 |
|
|
|
0～0.7 |
|
|
95 |
5～175 |
22 |
|
2 |
Limited to vertical mounting with coil section facing up. |
|
60 |
|
|
|
| PKS-06-27-AC200V |
0～70 |
|
PTFE material |
|
|
7 |
|
|
20 |
|
Rc |
35 |
|
|
|
|
|
2.2 |
95 |
|
|
|
2 |
Limited to vertical mounting with coil section facing up. |
|
60 |
400 or less (pneumatic 0.05~0.7 (0.5) MPa) |
|
|
| PKS-10-27-AC100V |
0～70 |
|
PTFE material |
|
Pilot kick type |
|
H |
|
25 |
|
Rc |
|
49 |
AC100(50/60Hz) |
|
|
110 |
|
|
|
22 |
|
|
|
|
60 |
400 or less (pneumatic 0.05~0.7 (0.5) MPa) |
|
|
| PKS-10-27-AC200V |
0～70 |
|
PTFE material |
|
Pilot kick type |
|
|
Bronze |
|
Steam |
|
46 |
|
|
|
|
|
2.9 |
107 |
|
|
1 |
|
Limited to vertical mounting with coil section facing up. |
|
|
400 or less (pneumatic 0.05~0.7 (0.5) MPa) |
|
145 |
How to Order
Confirm steam pressure and temperature, port size, coil voltage and normally closed or open function. Please confirm the full part number and options against the CKD catalog; contact us if you need help identifying the right model.

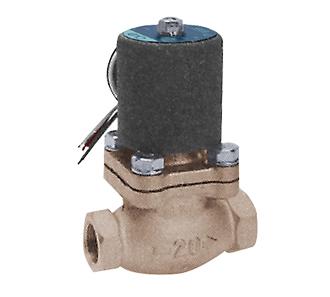

Product image is representative of the CKD series; appearance varies by size and model.
