CKD PKW — Pilot Kick 2-Port Valve for Water PKW Series, genuine CKD product.
Overview
The CKD PKW Series is a pilot kick 2-port solenoid valve made specifically for water service. It opens from zero differential pressure using direct plunger action and relies on pilot assistance at higher pressures, giving reliable on/off control across the pressure range. Common applications include cooling water supply, washing equipment, water treatment and utility lines in plants.
Key Features
- Designed for water, with suitable body and seal materials
- Works from 0 MPa differential pressure
- Pilot assistance enables larger flow paths
- AC coil options for typical plant control voltages
Specifications
| Part No. |
Dim. D (mm) |
Dim. E (mm) |
Dim. H (mm) |
Rated Voltage (V) |
Operation Type |
Material (Body) |
Mass (kg) |
Max. Operating Frequency (cycles/min) |
Heat Resistance Class |
Operating Pressure Range (MPa) |
Dim. g (mm) |
Dim. A (mm) |
Mounting Orientation |
Port Size (Rc) |
Orifice (mm) |
Dim. B (mm) |
Apparent Power (VA) |
Power Consumption (W) |
Thread Type |
Dim. C (mm) |
Cv Value |
Ambient Temp. (℃) |
Valve Seat Leakage (cm3/min) |
No. of Ports |
Coil |
Fluid Temp. (℃) |
| PKW-04-27-AC100V |
|
23 |
|
AC100(50/60Hz) |
Pilot kick type |
Bronze |
|
|
|
0～0.7 |
60 |
90 |
|
|
15 |
|
|
22 |
|
|
|
0～65 |
0 (water pressure 0.05~0.7 (0.5) MPa) |
2 |
|
|
| PKW-04-27-AC200V |
88 |
23 |
49 |
|
|
|
|
30 |
B |
|
60 |
|
Limited to vertical mounting with coil section facing up. |
|
15 |
126 |
|
22 |
|
|
|
|
0 (water pressure 0.05~0.7 (0.5) MPa) |
|
|
5～60 |
| PKW-06-27-AC100V |
95 |
26 |
|
|
Pilot kick type |
|
|
|
B |
|
|
100 |
Limited to vertical mounting with coil section facing up. |
|
|
133 |
|
22 |
|
35 |
7 |
|
0 (water pressure 0.05~0.7 (0.5) MPa) |
|
Open frame lead wire coil |
|
| PKW-06-27-AC200V |
95 |
26 |
|
AC200(50/60Hz) |
Pilot kick type |
|
2.2 |
30 |
|
|
60 |
100 |
|
|
|
|
|
22 |
|
35 |
|
0～65 |
|
|
|
5～60 |
| PKW-10-27-AC100V |
|
30 |
|
|
Pilot kick type |
|
|
|
B |
0～0.7 |
60 |
|
|
1 |
25 |
|
Holding: 30, Starting: 80 |
|
Rc |
|
|
|
|
2 |
Open frame lead wire coil |
5～60 |
| PKW-10-27-AC200V |
107 |
30 |
49 |
|
|
|
|
30 |
|
0～0.7 |
|
|
|
|
25 |
145 |
Holding: 30, Starting: 80 |
22 |
Rc |
|
|
|
|
|
Open frame lead wire coil |
5～60 |
How to Order
Specify port size, coil voltage and water temperature and pressure conditions. Please confirm the full part number and options against the CKD catalog; contact us if you need help identifying the right model.

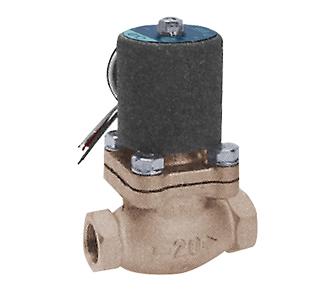

Product image is representative of the CKD series; appearance varies by size and model.
About CKD
CKD Corporation is a Japanese manufacturer of pneumatic and fluid control components, including solenoid valves, process valves, air cylinders, air preparation units (FRL), fittings and flow control devices.
Ordering & Shipping
- Genuine CKD product sourced through Korean distribution
- Ships worldwide from South Korea by FedEx International Priority Express
- Lead time varies by model; please inquire for exact delivery
- Import duties and taxes are payable by the recipient
- Bulk and trade pricing available on request
