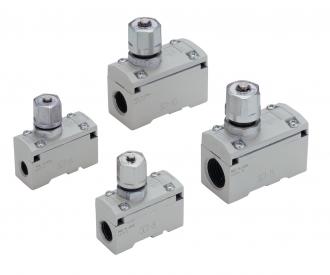

CKD SC1 — Speed Controller Medium Bore Type SC1 Series, genuine CKD product.
Overview
The CKD SC1 is a medium-bore speed controller that meters air flow in one direction while allowing free flow in the other, setting the extension or retraction speed of pneumatic cylinders. A needle adjusts the metered flow and a built-in check valve handles return flow. It is used in line between the valve and cylinder on general automation equipment.
Key Features
- Needle valve with check valve for one-way metering
- Medium bore suits larger cylinder flow rates
- In-line threaded connection
- Lock nut keeps the adjusted setting
Specifications
| Part No. |
Dim. H (mm) |
Fluid Temp. (℃) |
Proof Pressure (MPa) |
Dim. F (mm) |
Ambient Temp. (℃) |
Cross-Sectional Area (㎟) |
Needle Turns |
Dim. C (mm) |
Flow Rate (L/min(ANR)) |
Applicable Cylinder Bore (Ømm) |
Dim. J (mm) |
Port Size (Rc) |
Dim. D (mm) |
Fluid |
Dim. A (mm) |
Dim. I (Ømm) |
Dim. g (mm) |
Dim. B (mm) |
Min. Operating Pressure (MPa) |
Max. Operating Pressure (MPa) |
Dim. k (mm) |
Dim. E (mm) |
| SC1-10 |
30 |
|
|
15 |
0~60 (no freezing) |
Free flow: 39, controlled flow: 22 |
|
55 |
|
|
37 |
|
40 |
Compressed air |
|
18 |
|
21 |
|
1.0 |
23 |
|
| SC1-15 |
30 |
|
|
|
0~60 (no freezing) |
|
|
55 |
Free flow: 2900, controlled flow: 2400 |
|
37 |
1/2 |
|
Compressed air |
63 |
18 |
83 |
|
0.05 |
|
|
31 |
| SC1-6 |
22 |
5~60 (no freezing) |
|
|
0~60 (no freezing) |
|
|
|
|
20～50 |
|
1/8 |
|
Compressed air |
50 |
12 |
67 |
|
0.05 |
|
19 |
23 |
| SC1-8 |
22 |
|
1.5 |
|
|
|
10 |
42 |
Free flow: 930, controlled flow: 870 |
32～75 |
|
1/4 |
|
|
50 |
12 |
|
20 |
0.05 |
|
|
23 |
How to Order
Select by port size and confirm meter-out or meter-in orientation for the cylinder circuit. Please confirm the full part number and options against the CKD catalog; contact us if you need help identifying the right model.
Product image is representative of the CKD series; appearance varies by size and model.
