CKD SC-M5-S — Ultra-Compact Speed Controller SC-M5 Series, genuine CKD product.
Overview
The CKD SC-M5 is an ultra-compact speed controller that regulates the flow of air into or out of a small cylinder to set its piston speed. A needle adjusts a variable restriction while a built-in check valve allows free flow in the opposite direction. It is designed for miniature cylinders with M5 ports used in electronics assembly and small automation.
Key Features
- Very small body for M5-threaded actuator ports
- Needle adjustment with built-in check valve
- Meter-out or meter-in control depending on installation
- Lock nut holds the setting after adjustment
Specifications
| Part No. |
Dim. A (mm) |
Applicable Cylinder Bore (Ømm) |
Fluid Temp. (℃) |
Dim. B (mm) |
Shape |
Flow Rate (L/min(ANR)) |
Max. Operating Pressure (MPa) |
Dim. F (mm) |
Dim. H (mm) |
Cross-Sectional Area (㎟) |
Mass (g) |
Dim. I (Ømm) |
| SC-M5-S |
25(max28.5) |
6～25 |
5~60 (no freezing) |
13.5 |
Straight |
Free flow: 53, controlled flow: 47 |
0.7 |
12 |
6.5 |
Free flow: 0.8, controlled flow: 0.7 |
5.6 |
3.2 |
How to Order
Confirm the port thread, tube connection type and the required flow control direction. Please confirm the full part number and options against the CKD catalog; contact us if you need help identifying the right model.

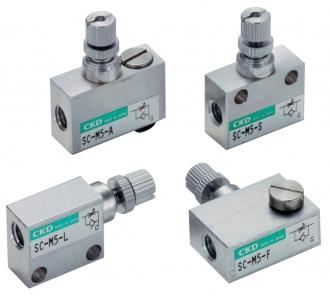

Product image is representative of the CKD series; appearance varies by size and model.
