CKD SL — Silencer SL Series (Metal), genuine CKD product.
Overview
The CKD SL Series metal silencer screws into valve exhaust ports to reduce the noise of escaping compressed air. Its porous element diffuses the exhaust stream while keeping back pressure low enough not to slow actuator response. Metal construction makes it suitable for workshops, machine tools and environments where plastic silencers may be damaged.
Key Features
- Metal body for durability in harsh areas
- Porous element diffuses exhaust air
- Low back pressure maintains actuator speed
- Simple screw-in installation
Specifications
| Part No. |
Proof Pressure (MPa) |
Dim. c (Ømm) |
Tightening Torque (N·m) |
Operating Ambient Temp. (℃) |
Dim. B (mm) |
Class |
Mass (g) |
Cross-Sectional Area (㎟) |
Port |
Max. Operating Pressure (MPa) |
Port Size |
Dim. A (mm) |
Noise Reduction (dB) |
Flow Rate (m3/min[ANR]) |
Applicable Cylinder Bore (Ømm) |
Fluid Temp. (℃) |
Fluid |
| SL-10A |
1.35 |
36 |
13～15 |
0~60 (no freezing) |
49.5 |
Made of metal |
100 |
|
R |
0.9 |
|
74.5 |
20 or more |
|
63～140 |
|
|
| SL-15A |
1.35 |
36 |
16～18 |
0~60 (no freezing) |
49.5 |
|
|
61 |
|
0.9 |
R1/2 |
77.5 |
20 or more |
|
75～180 |
|
Air |
| SL-20A |
1.35 |
56 |
19～40 |
0~60 (no freezing) |
61 |
Made of metal |
245 |
160 |
|
|
R3/4 |
|
|
12 |
|
5~60 (no freezing) |
Air |
| SL-25A |
1.35 |
56 |
41～70 |
0~60 (no freezing) |
|
Made of metal |
250 |
210 |
R |
0.9 |
|
100 |
|
14 |
140～250 |
|
|
| SL-32A |
1.35 |
|
43～75 |
0~60 (no freezing) |
|
Made of metal |
|
280 |
R |
0.9 |
R1-1/4 |
|
20 or more |
19 |
|
5~60 (no freezing) |
Air |
| SL-40A |
1.35 |
72 |
45～80 |
0~60 (no freezing) |
|
|
500 |
320 |
R |
0.9 |
|
108 |
20 or more |
|
140～450 |
|
Air |
| SL-50A |
|
89 |
47～85 |
0~60 (no freezing) |
70 |
Made of metal |
|
500 |
|
0.9 |
R2 |
|
20 or more |
33 |
|
5~60 (no freezing) |
Air |
| SL-8A |
1.35 |
|
6～8 |
0~60 (no freezing) |
|
Made of metal |
75 |
|
R |
|
R1/4 |
64 |
|
2.4 |
50～100 |
5~60 (no freezing) |
Air |
How to Order
Choose the thread size that matches the exhaust port and confirm the expected exhaust flow. Please confirm the full part number and options against the CKD catalog; contact us if you need help identifying the right model.

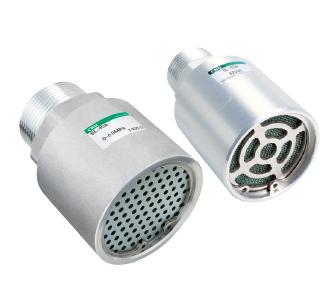

Product image is representative of the CKD series; appearance varies by size and model.
