Description
CKD SLW — Silencer SLW Series (Resin), genuine CKD product.
Overview
SLW Series silencers screw into valve exhaust ports to reduce the noise of escaping compressed air. This CKD resin-body version is lightweight and corrosion resistant, using a porous element to diffuse exhaust flow. It is widely fitted to solenoid valves, manifolds and air blow outlets in factories where workplace noise levels must be controlled.
Key Features
- Resin body is light and resists corrosion
- Porous element diffuses exhaust air noise
- Threaded mounting directly into exhaust ports
- Low back pressure to preserve valve response
Specifications
| Part No. |
Dim. D (mm) |
Dim. B (mm) |
Flow Rate (L/min(ANR)) |
Operating Temp. Range (˚C) |
Proof Pressure (MPa) |
Applicable Cylinder Bore (Ømm) |
Dim. A (mm) |
Cross-Sectional Area (㎟) |
Max. Operating Pressure (MPa) |
Dim. C (mm) |
Port |
Fluid |
Fluid Temp. (℃) |
Class |
Dim. E (mm) |
Port Size |
Noise Reduction (dB) |
| SLW-10A |
17 |
48.5 |
2000 |
|
|
50～100 |
58.5 |
30 |
|
|
R |
Compressed air |
|
Made of resin |
12 |
R3/8 |
30 or more |
| SLW-15A |
19 |
|
|
-10~60℃ (no freezing) |
|
50～100 |
71.4 |
|
1.0 |
28 |
R |
Compressed air |
5~60 (no freezing) |
Made of resin |
15 |
R1/2 |
|
| SLW-6A |
10 |
28 |
650 |
-10~60℃ (no freezing) |
|
|
34.5 |
10 |
1.0 |
16.5 |
R |
Compressed air |
5~60 (no freezing) |
Made of resin |
|
|
|
| SLW-8A |
13 |
|
|
-10~60℃ (no freezing) |
1.5 |
32～80 |
44.5 |
20 |
|
20 |
R |
|
5~60 (no freezing) |
Made of resin |
8.5 |
R1/4 |
|
How to Order
Match the thread size to the exhaust port and check required flow capacity. Please confirm the full part number and options against the CKD catalog; contact us if you need help identifying the right model.

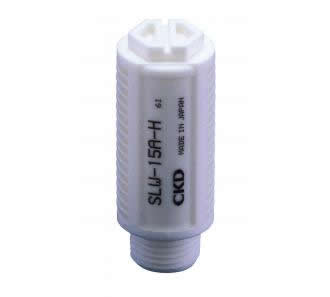

Product image is representative of the CKD series; appearance varies by size and model.
About CKD
CKD Corporation is a Japanese manufacturer of pneumatic and fluid control components, including solenoid valves, process valves, air cylinders, air preparation units (FRL), fittings and flow control devices.
Ordering & Shipping
- Genuine CKD product sourced through Korean distribution
- Ships worldwide from South Korea by FedEx International Priority Express
- Lead time varies by model; please inquire for exact delivery
- Import duties and taxes are payable by the recipient
- Bulk and trade pricing available on request
