CKD SSD — Compact Cylinder SSD Series, genuine CKD product.
Overview
The CKD SSD Series compact cylinder has a short, thin body that provides linear motion where installation space is tight. Compressed air acts on a piston to extend and retract the rod, and the square body mounts directly with through-holes or tapped holes. It is used for clamping, pushing, stopping and positioning in jigs and automated machinery.
Key Features
- Short overall length for confined spaces
- Square body mounts directly without separate brackets
- Wide range of bore sizes and strokes
- Switch-ready versions for position sensing
Specifications
| Part No. |
Piston Speed (mm/s) |
Mass (g) |
Stroke (mm) |
Cylinder Bore (Ømm) |
Min. Operating Pressure (MPa) |
Port Size |
Operation Type |
| SSD-12-30 |
|
|
30 |
12 |
|
|
Double acting, single rod type |
| SSD-16-20 |
|
|
20 |
16 |
|
|
Double acting, single rod type |
| SSD-20-10 |
50～500 |
|
10 |
20 |
0.1 |
M5 |
Double acting type |
| SSD-20-15 |
50～500 |
|
15 |
20 |
0.1 |
M5 |
Double acting type |
| SSD-20-30 |
50～500 |
|
30 |
20 |
0.1 |
M5 |
Double acting type |
| SSD-20-5 |
50～500 |
|
5 |
20 |
0.1 |
M5 |
Double acting type |
| SSD-32-10 |
|
|
10 |
32 |
|
|
Double acting, single rod type |
| SSD-32-20 |
|
|
20 |
32 |
|
|
Double acting, single rod type |
| SSD-32-5 |
|
|
5 |
32 |
|
|
Double acting, single rod type |
| SSD-40-20 |
|
263 |
20 |
40 |
|
|
Double acting, single rod type |
| SSD-50-50 |
|
|
50 |
50 |
|
|
Double acting, single rod type |
How to Order
Specify bore size, stroke, rod end style and whether a magnet for cylinder switches is required. Please confirm the full part number and options against the CKD catalog; contact us if you need help identifying the right model.

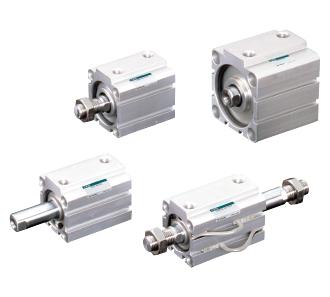

Product image is representative of the CKD series; appearance varies by size and model.
