Description
CKD A1019 — Air Filter (Separate Type), genuine CKD product.
Overview
This separate type air filter from CKD removes moisture, solid particles and contaminants from compressed air before it reaches valves and actuators. Air swirls through the bowl so water and dirt drop out, then passes through a filter element. As a stand-alone unit, it is installed in-line on machines, branch lines and point-of-use supplies.
Key Features
- Centrifugal separation removes water and large particles
- Replaceable filter element for fine particle removal
- Transparent or protected bowl for drain inspection
- Separate body installs independently in the air line
Specifications
| Part No. |
Overall Length (mm) |
Port Size |
Filtration Rating (㎛) |
Mass (kg) |
Max. Operating Pressure (MPa) |
Max. Flow (L) |
Proof Pressure (MPa) |
Fluid Temp. (℃) |
| A1019-1C |
92 |
Rc1/8 |
5 |
0.1 |
1.0 |
500 |
1.5 |
5～65 |
| A1019-2C |
92 |
Rc1/4 |
5 |
0.1 |
1.0 |
700 |
1.5 |
5～65 |
How to Order
Specify port size, filtration rating and drain type such as manual or automatic. Please confirm the full part number and options against the CKD catalog; contact us if you need help identifying the right model.

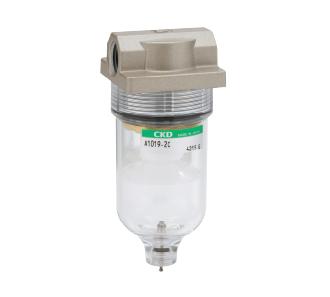

Product image is representative of the CKD series; appearance varies by size and model.
About CKD
CKD Corporation is a Japanese manufacturer of pneumatic and fluid control components, including solenoid valves, process valves, air cylinders, air preparation units (FRL), fittings and flow control devices.
