CKD PPX-R — Digital Pressure Sensor, genuine CKD product.
Overview
A CKD digital pressure sensor converts air or gas pressure into an electrical output and shows the reading on a built-in display. Set points can be configured to switch outputs at defined pressures, making it useful for confirming supply pressure, vacuum or clamping force. It is used in pneumatic circuits on assembly lines, robots and vacuum handling systems.
Key Features
- Digital display for direct reading of pressure
- Configurable switch output thresholds
- Pressure or vacuum ranges selectable by model
- Compact housing for panel or in-line installation
Specifications
| Part No. |
Hysteresis |
Withstand Voltage |
Insulation Resistance |
Enclosure Protection |
Supply Voltage (V) |
Output Mode |
Shock Resistance (Durability) |
Repeatability |
Operating Ambient Temp. (℃) |
Applicable Fluid |
Port Size |
Pressure Setting Range (kPa) |
Rated Pressure Range (kPa) |
Set Pressure Range (MPa) |
Short-Circuit Protection |
Output Operation |
Rated Pressure Range (MPa) |
Min. Display Unit |
| PPX-R01N-6M |
|
AC1000V for 1 minute between all live parts and case |
|
IP40(IEC) |
12~24 DC ±10%, ripple P-P 10% or less |
|
|
±0.1%F.S. (within ±2 digits) |
-10~+50, storage: -10~+60 |
|
M5 female thread + R(PT) 1/8 male thread |
-100.0～+100.0 |
|
|
|
|
- |
|
| PPX-R10N-6M |
|
AC1000V for 1 minute between all live parts and case |
|
|
12~24 DC ±10%, ripple P-P 10% or less |
EASY mode / hysteresis mode / window comparator mode |
|
±0.2%F.S. (within ±2 digits) |
|
Air, non-corrosive gas |
|
|
- |
-0.100～+1000 |
Equipped |
NO/NC selectable by key operation |
|
0.001MPa |
| PPX-R10P-6M |
Min. 1 digit (variable) |
|
50MΩ or more with DC500V megger between all live parts and case |
|
12~24 DC ±10%, ripple P-P 10% or less |
|
100m/S2 (approx. 10G), XYZ directions 3 times each |
|
-10~+50, storage: -10~+60 |
|
|
- |
- |
-0.100～+1000 |
|
NO/NC selectable by key operation |
-0.100～+1000 |
|
How to Order
Check the pressure range, output type (NPN or PNP), port connection and cable length. Please confirm the full part number and options against the CKD catalog; contact us if you need help identifying the right model.

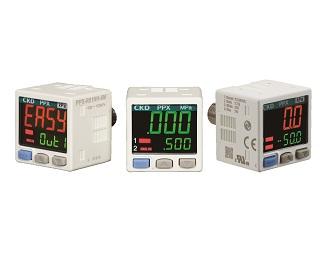

Product image is representative of the CKD series; appearance varies by size and model.
