Description
CKD L — Lubricator (Selex), genuine CKD product.
Overview
This CKD Selex lubricator belongs to the modular Selex air preparation line and delivers controlled oil mist into the compressed air stream. It connects to Selex filters and regulators to form a complete FRL unit, supplying lubrication to downstream valves and cylinders. It is used on machines whose actuators require lubricated air.
Key Features
- Modular body joins with Selex filters and regulators
- Adjustable oil drip rate for consistent lubrication
- Clear bowl for monitoring oil level
- Several body sizes to match air flow
Specifications
| Part No. |
Class |
Max. Switching Current |
Max. Operating Pressure (MPa) |
Min. Drip Flow Rate (m3/min) (ANR) |
Applicable Oil |
Max. Operating Voltage (V) |
Insulation Resistance (MΩ) |
Reservoir Capacity (cm3) |
Fluid |
Accessories |
Overall Length (mm) |
No. of Control Points |
Thread Type |
Operating Temp. Range (˚C) |
Max. Switching Capacity |
Mass (kg) |
Port Size (Rc) |
Type |
| L1000-8-W |
SELEX |
0.5A |
|
|
Turbine oil class 1 ISO VG32 (spindle oil not usable) |
AC240、DC200 |
100 or more (between terminal and case, with DC500V megger) |
20 |
Compressed air |
Bowl guard |
|
|
|
5～60 |
50VA, 50W (whichever is smaller) |
|
|
White type |
| L3000-10-W |
|
0.5A |
1.5 |
0.035 |
|
|
100 or more (between terminal and case, with DC500V megger) |
|
|
Bowl guard |
169.5 |
|
|
5～60 |
50VA, 50W (whichever is smaller) |
0.28 |
3/8 |
White type |
| L3000-8-W |
SELEX |
0.5A |
|
0.035 |
Turbine oil class 1 ISO VG32 (spindle oil not usable) |
|
|
85 |
Compressed air |
|
169.5 |
|
Rc |
5～60 |
50VA, 50W (whichever is smaller) |
|
1/4 |
|
| L4000-10-W |
|
|
1.5 |
0.065 |
Turbine oil class 1 ISO VG32 (spindle oil not usable) |
AC240、DC200 |
100 or more (between terminal and case, with DC500V megger) |
170 |
|
Bowl guard |
196 |
|
Rc |
5～60 |
|
0.45 |
|
|
| L4000-15-W |
SELEX |
0.5A |
|
|
Turbine oil class 1 ISO VG32 (spindle oil not usable) |
AC240、DC200 |
|
|
Compressed air |
Bowl guard |
196 |
1 point |
Rc |
5～60 |
50VA, 50W (whichever is smaller) |
|
|
White type |
How to Order
Specify body size, port size and attachments, and confirm the recommended oil type. Please confirm the full part number and options against the CKD catalog; contact us if you need help identifying the right model.

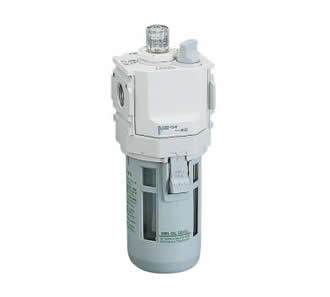

Product image is representative of the CKD series; appearance varies by size and model.
About CKD
CKD Corporation is a Japanese manufacturer of pneumatic and fluid control components, including solenoid valves, process valves, air cylinders, air preparation units (FRL), fittings and flow control devices.
Ordering & Shipping
- Genuine CKD product sourced through Korean distribution
- Ships worldwide from South Korea by FedEx International Priority Express
- Lead time varies by model; please inquire for exact delivery
- Import duties and taxes are payable by the recipient
- Bulk and trade pricing available on request
