Description
CKD C — Clean Air Unit (with Auto Drain), genuine CKD product.
Overview
A clean air unit combines filtration stages to deliver compressed air suitable for sensitive pneumatic equipment. This CKD version includes an automatic drain that discharges collected water without manual attention. It is used at the inlet of machines and production lines where reliable air quality matters, such as electronics assembly, painting and precision instruments.
Key Features
- Integrated filtration stages in one modular assembly
- Auto drain removes condensate without operator action
- Modular connection with other F.R.L. components
- Bowl guard protects against impact
Specifications
| Part No. |
Overall Length (mm) |
Type |
Port Size (Rc) |
Set Pressure Range (MPa) |
Drain Discharge |
Flow Direction |
Mass (kg) |
Reservoir Capacity (cm3) |
Exhaust Device |
Min. Drip Flow Rate (m3/min) (ANR) |
Drain Capacity (cm3) |
Max. Operating Pressure (MPa) |
Filtration Rating (㎛) |
Accessories |
Operating Temp. Range (˚C) |
Air Flow Capacity (m3/min) (ANR) |
Pressure Gauge |
Fluid |
Thread Type |
| C3000-10-W-F |
|
|
3/8 |
0.05～0.85 |
|
Standard flow (left→right) |
1.15 |
|
With relief mechanism |
|
45 |
1 |
5 |
|
5～60 |
1.7 |
Standard pressure gauge (with G401-W) |
Compressed air |
|
| C3000-8-W-F |
|
White type |
1/4 |
0.05～0.85 |
Filter, manual auto drain (NO type) |
|
|
85 |
With relief mechanism |
0.03 |
45 |
1 |
5 |
|
|
|
Standard pressure gauge (with G401-W) |
|
Rc |
| C4000-10-W-F |
|
|
3/8 |
|
|
Standard flow (left→right) |
1.7 |
170 |
With relief mechanism |
0.065 |
80 |
|
5 |
Pressure gauge, bracket, bowl guard |
5～60 |
|
|
Compressed air |
Rc |
| C4000-15-W-F |
225 |
|
1/2 |
0.05～0.85 |
Filter, manual auto drain (NO type) |
Standard flow (left→right) |
1.7 |
170 |
|
|
|
1 |
5 |
Pressure gauge, bracket, bowl guard |
5～60 |
|
Standard pressure gauge (with G401-W) |
|
|
| C4000-8-W-F |
225 |
White type |
1/4 |
0.05～0.85 |
|
Standard flow (left→right) |
|
|
With relief mechanism |
|
80 |
1 |
5 |
|
5～60 |
|
Standard pressure gauge (with G401-W) |
Compressed air |
|
| C8000-25-W-F |
313 |
|
|
0.05～0.85 |
Filter, manual auto drain (NO type) |
Standard flow (left→right) |
|
|
With relief mechanism |
0.065 |
|
1 |
5 |
|
5～60 |
|
Standard pressure gauge (with G401-W) |
Compressed air |
Rc |
How to Order
Confirm port size, flow capacity, drain type and the air quality needed downstream. Please confirm the full part number and options against the CKD catalog; contact us if you need help identifying the right model.

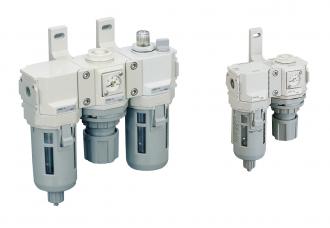

Product image is representative of the CKD series; appearance varies by size and model.
