Description
CKD F — Air Filter (Selex), genuine CKD product.
Overview
The CKD Selex air filter removes solid particles and liquid water from compressed air before it reaches valves and actuators. Air is swirled to separate droplets and then passed through a filter element, with condensate collected in a bowl. It is a basic component of air preparation units in factories, workshops and machine pneumatic systems.
Key Features
- Replaceable filter element for easy maintenance
- Bowl with drain to discharge collected condensate
- Modular design connects with regulators and lubricators
- Several body sizes to match flow requirements
Specifications
| Part No. |
Filtration Rating (㎛) |
Ambient and Fluid Temp. (℃) |
Accessories |
Drain Discharge |
Max. Operating Pressure (MPa) |
Fluid |
Overall Length (mm) |
Port Size (Rc) |
Thread Type |
Type |
Flow Direction |
Mass (kg) |
| F1000-8-W |
5 |
5～60 |
Bowl guard |
With manual drain cock |
1 |
Compressed air |
114 |
1/4 |
Rc |
White type |
Left→Right |
0.087 |
| F3000-10-W |
5 |
5～60 |
Bowl guard |
With manual drain cock |
1 |
Compressed air |
169.5 |
3/8 |
Rc |
|
Left→Right |
0.25 |
| F3000-8-W |
|
5～60 |
Bowl guard |
With manual drain cock |
1 |
Compressed air |
169.5 |
1/4 |
Rc |
White type |
Left→Right |
0.25 |
| F4000-10-W |
5 |
5～60 |
Bowl guard |
With manual drain cock |
1 |
Compressed air |
192.5 |
|
Rc |
White type |
Left→Right |
0.45 |
| F4000-15-W |
5 |
5～60 |
Bowl guard |
With manual drain cock |
1 |
Compressed air |
192.5 |
1/2 |
Rc |
White type |
Left→Right |
|
| F4000-8-W |
5 |
5～60 |
Bowl guard |
With manual drain cock |
1 |
Compressed air |
192.5 |
1/4 |
Rc |
White type |
Left→Right |
|
| F8000-25-W |
5 |
5～60 |
Bowl guard |
With manual drain cock |
|
Compressed air |
281 |
1 |
Rc |
White type |
Left→Right |
1.16 |
How to Order
Select the body size, port size, filtration rating and drain type. Please confirm the full part number and options against the CKD catalog; contact us if you need help identifying the right model.

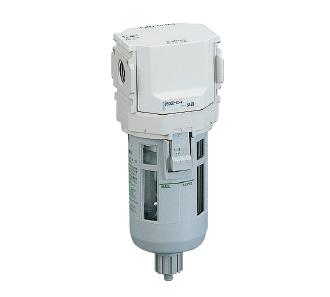

Product image is representative of the CKD series; appearance varies by size and model.
About CKD
CKD Corporation is a Japanese manufacturer of pneumatic and fluid control components, including solenoid valves, process valves, air cylinders, air preparation units (FRL), fittings and flow control devices.
