Description
CKD F — Air Filter (with Auto Drain), genuine CKD product.
Overview
This CKD air filter with auto drain removes solid particles and liquid water from compressed air, then discharges the collected condensate automatically. Air passes through a filter element after centrifugal separation of droplets in the bowl. It is installed upstream of regulators, valves and actuators to protect pneumatic components from contamination.
Key Features
- Automatic drain discharges condensate without manual work
- Replaceable element captures solid particles
- Centrifugal separation of water droplets
- Transparent bowl for visual inspection
Specifications
| Part No. |
Overall Length (mm) |
Fluid |
Drain Capacity (cm3) |
Flow Direction |
Port Size (Rc) |
Thread Type |
Filtration Rating (㎛) |
Operating Temp. Range (˚C) |
Air Flow Capacity (m3/min) (ANR) |
Type |
Accessories |
Element (μm) |
Max. Operating Pressure (MPa) |
Drain Discharge |
Mass (kg) |
| F3000-08-W-F |
169.5 |
Compressed air |
45 |
|
1/4 |
Rc |
5 |
5～60 |
|
White type |
Bowl guard |
|
1 |
Filter, manual auto drain (NO type) |
0.25 |
| F3000-10-W-F |
169.5 |
Compressed air |
45 |
Left→Right |
3/8 |
Rc |
5 |
5～60 |
|
White type |
Bowl guard |
|
1 |
|
0.25 |
| F4000-10-W-F |
192.5 |
Compressed air |
80 |
|
3/8 |
Rc |
5 |
5～60 |
|
White type |
Bowl guard |
|
1 |
Filter, manual auto drain (NO type) |
0.45 |
| F4000-15-W-F |
192.5 |
Compressed air |
80 |
Left→Right |
1/2 |
|
5 |
5～60 |
|
White type |
Bowl guard |
|
1 |
Filter, manual auto drain (NO type) |
0.45 |
| F4000-8-W-F |
|
Compressed air |
80 |
Left→Right |
1/4 |
Rc |
5 |
5～60 |
|
White type |
Bowl guard |
|
1 |
Filter, manual auto drain (NO type) |
0.45 |
| F8000-20-W-F |
281 |
|
80 |
Left→Right |
3/4 |
Rc |
5 |
5～60 |
6.4 |
White type |
Bowl guard |
|
|
Filter, manual auto drain (NO type) |
1.16 |
| F8000-20-W-FY |
281 |
Compressed air |
|
Left→Right |
3/4 |
Rc |
|
5～60 |
|
White type |
Bowl guard |
0.3μm element (sub-micron) |
1 |
Filter, manual auto drain (NO type) |
1.16 |
| F8000-25-W-FY |
281 |
Compressed air |
80 |
Left→Right |
1 |
Rc |
0.3 |
5～60 |
|
White type |
Bowl guard |
|
1 |
Filter, manual auto drain (NO type) |
|
How to Order
Confirm port size, filtration rating, drain type and required flow at the operating pressure. Please confirm the full part number and options against the CKD catalog; contact us if you need help identifying the right model.

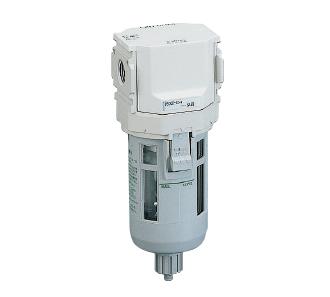

Product image is representative of the CKD series; appearance varies by size and model.
About CKD
CKD Corporation is a Japanese manufacturer of pneumatic and fluid control components, including solenoid valves, process valves, air cylinders, air preparation units (FRL), fittings and flow control devices.
Ordering & Shipping
- Genuine CKD product sourced through Korean distribution
- Ships worldwide from South Korea by FedEx International Priority Express
- Lead time varies by model; please inquire for exact delivery
- Import duties and taxes are payable by the recipient
- Bulk and trade pricing available on request
