Description
CKD W — Filter Regulator (Selex) with Auto Drain, genuine CKD product.
Overview
The CKD Selex filter regulator combines filtration and pressure regulation in one modular body, and this version includes an automatic drain. Air is cleaned of water and particles, then reduced to a stable set pressure for the equipment downstream. It is a common choice for compact air preparation at the inlet of individual machines.
Key Features
- Filter and regulator integrated in a single body
- Automatic drain releases condensate unattended
- Adjustment knob sets downstream pressure
- Joins modularly with other Selex components
Specifications
| Part No. |
Accessories |
Pressure Gauge |
Drain Discharge |
Port Size |
Set Pressure Range (MPa) |
Operating Pressure (MPa) |
Fluid Temp. (℃) |
Mass (kg) |
Air Flow Capacity (m3/min) (ANR) |
Max. Operating Pressure (MPa) |
Operating Temp. Range (˚C) |
Filtration Rating (㎛) |
Port Size (Rc) |
Relief |
Overall Length (mm) |
Drain Capacity (cm3) |
Set Pressure (MPa) |
Fluid |
Thread Type |
| W2000-10-W-F1 |
|
With standard pressure gauge (G401-W) |
Manual auto drain (NC type: no discharge when unpressurized) |
Rc3/8 |
|
0.15～1.0 |
5～60 |
|
2.0 |
|
|
|
|
With relief mechanism |
169.5 |
25 |
0.05～0.85 |
Compressed air |
Rc |
| W2000-8-W-F1 |
|
With standard pressure gauge (G401-W) |
Manual auto drain (NC type: no discharge when unpressurized) |
|
|
0.15～1.0 |
5～60 |
|
1.5 |
|
|
5 |
|
With relief mechanism |
169.5 |
25 |
0.05～0.85 |
Compressed air |
Rc |
| W3000-10-W-F |
|
|
Filter, manual auto drain (NO type) |
|
0.05～0.85 |
|
|
0.6 |
|
1 |
5～60 |
5 |
3/8 |
With relief mechanism |
251 |
45 |
|
Compressed air |
Rc |
| W3000-8-W-F |
Pressure gauge, bowl guard |
|
Filter, manual auto drain (NO type) |
|
0.05～0.85 |
|
|
0.6 |
|
1 |
5～60 |
5 |
1/4 |
With relief mechanism |
251 |
|
|
Compressed air |
Rc |
| W4000-10-W-F |
Pressure gauge, bowl guard |
With standard pressure gauge (G401-W) |
Filter, manual auto drain (NO type) |
|
0.05～0.85 |
|
|
0.9 |
|
|
5～60 |
5 |
|
With relief mechanism |
280 |
80 |
|
Compressed air |
Rc |
| W4000-15-W-F |
Pressure gauge, bowl guard |
With standard pressure gauge (G401-W) |
|
|
0.05～0.85 |
|
|
|
|
1 |
5～60 |
5 |
1/2 |
With relief mechanism |
280 |
80 |
|
Compressed air |
Rc |
| W4000-8-W-F |
Pressure gauge, bowl guard |
|
Filter, manual auto drain (NO type) |
|
0.05～0.85 |
|
|
0.9 |
|
1 |
5～60 |
5 |
|
With relief mechanism |
280 |
80 |
|
Compressed air |
Rc |
| W8000-20W-F |
Pressure gauge, bowl guard |
|
Filter, manual auto drain (NO type) |
|
0.05～0.85 |
|
|
2 |
|
1 |
5～60 |
5 |
3/4 |
|
407 |
80 |
|
Compressed air |
Rc |
| W8000-25-W-F |
Pressure gauge, bowl guard |
|
Filter, manual auto drain (NO type) |
|
0.05～0.85 |
|
|
2 |
|
1 |
5～60 |
5 |
1 |
|
407 |
80 |
|
Compressed air |
Rc |
How to Order
Check port size, pressure setting range, filtration rating and auto drain type. Please confirm the full part number and options against the CKD catalog; contact us if you need help identifying the right model.

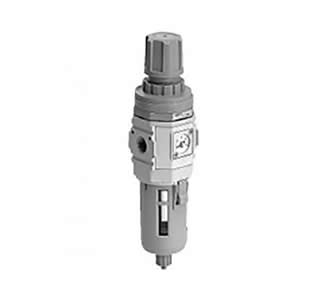

Product image is representative of the CKD series; appearance varies by size and model.
