Description
CKD M — Oil Mist Filter, genuine CKD product.
Overview
The CKD oil mist filter captures fine oil aerosol and sub-micron particles that standard filters pass. It is normally installed downstream of a general-purpose air filter, using a coalescing element to merge mist into droplets that drain away. Typical applications include painting, food packaging, instrumentation and any process that needs oil-free compressed air.
Key Features
- Coalescing element for removing oil mist
- Install after a main line filter for best service life
- Modular body joins other preparation units
- Element and bowl are replaceable
Specifications
| Part No. |
Operating Temp. Range (˚C) |
Max. Flow Capacity (L/min[ANR) |
Fluid |
Drain Capacity (cm3) |
Mass (kg) |
Thread Type |
Accessories |
Operating Pressure Range (MPa) |
Port Size (Rc) |
Flow Direction |
Overall Length (mm) |
Drain Discharge |
Type |
| M1000-6-W |
5～60 |
150 |
Compressed air |
3 |
0.096 |
Rc |
Bowl guard |
0.1～1.0 |
1/8 |
Left→Right |
114 |
With manual drain cock |
|
| M1000-8-W |
5～60 |
150 |
Compressed air |
3 |
0.096 |
Rc |
Bowl guard |
0.1～1.0 |
1/4 |
Left→Right |
114 |
With manual drain cock |
|
| M3000-10-W |
5～60 |
360 |
Compressed air |
45 |
0.28 |
Rc |
Bowl guard |
0.1～1.0 |
3/8 |
Left→Right |
170.5 |
With manual drain cock |
|
| M4000-10-W |
5～60 |
825 |
Compressed air |
80 |
0.52 |
Rc |
Bowl guard |
0.1～1.0 |
3/8 |
Left→Right |
193.5 |
With manual drain cock |
|
| M4000-15-W |
5～60 |
825 |
Compressed air |
80 |
0.52 |
Rc |
Bowl guard |
0.1～1.0 |
1/2 |
Left→Right |
193.5 |
With manual drain cock |
|
| M4000-8-W |
5～60 |
825 |
Compressed air |
80 |
0.52 |
Rc |
Bowl guard |
0.1～1.0 |
1/4 |
Left→Right |
193.5 |
With manual drain cock |
|
| M8000-25-W-F1 |
5～60 |
2600 |
Compressed air |
80 |
1.35 |
Rc |
Bowl guard |
0.1～1.0 |
1 |
Left→Right |
336 |
|
Auto drain |
How to Order
Confirm port size, required flow rate and that a prefilter is installed upstream. Please confirm the full part number and options against the CKD catalog; contact us if you need help identifying the right model.

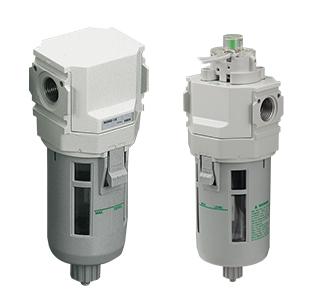

Product image is representative of the CKD series; appearance varies by size and model.
About CKD
CKD Corporation is a Japanese manufacturer of pneumatic and fluid control components, including solenoid valves, process valves, air cylinders, air preparation units (FRL), fittings and flow control devices.
Ordering & Shipping
- Genuine CKD product sourced through Korean distribution
- Ships worldwide from South Korea by FedEx International Priority Express
- Lead time varies by model; please inquire for exact delivery
- Import duties and taxes are payable by the recipient
- Bulk and trade pricing available on request
