CKD 1138 — Air Filter (Separate Type) Large, genuine CKD product.
Overview
CKD's large separate-type air filter is designed for main lines and high-flow branches, removing water, rust and dust from compressed air before it reaches downstream equipment. Its larger bowl and element suit higher flow rates than modular point-of-use filters. It is typical in plant air distribution and upstream of large air consumers.
Key Features
- Large body for high flow capacity
- Separate installation independent of FRL modules
- Element removes rust, scale and dust
- Drain provision for collected condensate
Specifications
| Part No. |
Overall Length (mm) |
Proof Pressure (MPa) |
Port Size |
Drain Discharge |
Material (Bowl) |
Accessories |
Max. Operating Pressure (MPa) |
Thread Type |
Max. Flow (L) |
Fluid |
Filtration Rating (㎛) |
Fluid Temp. (℃) |
Element (μm) |
| 1138-6C-E |
253.5 |
1.5 |
Rc3/4 |
Flexible drain |
Polycarbonate |
Bowl guard |
1 |
Rc |
5500 |
|
5 |
5～65 |
5 |
| 1138-8C-E |
|
1.5 |
Rc1 |
Flexible drain |
Polycarbonate |
Bowl guard |
1 |
Rc |
7000 |
Compressed air |
5 |
5～65 |
5 |
How to Order
Check the port size, rated flow and drain method required for the installation. Please confirm the full part number and options against the CKD catalog; contact us if you need help identifying the right model.

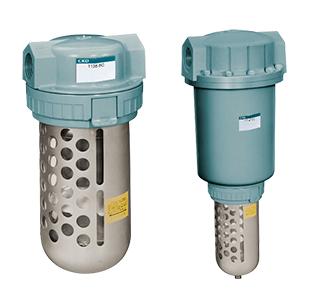

Product image is representative of the CKD series; appearance varies by size and model.
