CKD 2215 — Regulator (Separate Type) Large, genuine CKD product.
Overview
This large separate-type regulator from CKD reduces higher compressed-air supply pressure to a stable, lower working pressure. A diaphragm balances spring force against outlet pressure to keep the output constant as flow and supply change. Large body sizes are used on main supply branches and high-consumption equipment.
Key Features
- Diaphragm-type pressure regulation with relief function
- Large body size for high flow lines
- Gauge port for monitoring set pressure
- Installs as a separate unit in the air line
Specifications
| Part No. |
Mass (kg) |
Set Pressure Range (MPa) |
Port Size (Rc) |
Proof Pressure (MPa) |
Material (Body) |
Fluid |
Fluid Temp. (℃) |
Max. Operating Pressure (MPa) |
| 2215-6C |
2.5 |
0.07～0.83 |
3/4 |
3.09 |
Zinc die cast |
Compressed air |
5～65 |
2.06 |
| 2215-8C |
2.5 |
0.07～0.83 |
1 |
3.09 |
Zinc die cast |
Compressed air |
5～65 |
2.06 |
How to Order
Confirm port size, set pressure range and maximum flow for the application. Please confirm the full part number and options against the CKD catalog; contact us if you need help identifying the right model.

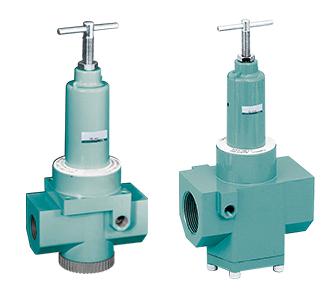

Product image is representative of the CKD series; appearance varies by size and model.
