Description
CKD C — WL Combination, genuine CKD product.
Overview
The WL Combination from CKD joins a filter regulator with a lubricator in one assembled unit. Compressed air is cleaned, regulated to a set pressure and dosed with a fine oil mist for downstream components that require lubrication. It is a space-saving air preparation solution for machine tools, air tools and older pneumatic equipment.
Key Features
- Filter regulator and lubricator pre-assembled
- Adjustable oil drip rate for downstream lubrication
- Reduces piping and installation space
- Drain and bowl accessible for maintenance
Specifications
| Part No. |
Min. Drip Flow Rate (m3/min) (ANR) |
Thread Type |
Component Devices |
Filtration Rating (㎛) |
Mass (kg) |
Applicable Oil |
Fluid |
Drain Capacity (cm3) |
Accessories |
Port Size (Rc) |
Overall Length (mm) |
Reservoir Capacity (cm3) |
Operating Temp. Range (˚C) |
Proof Pressure (MPa) |
Max. Operating Pressure (MPa) |
| C1010-8-W |
0.015 |
Rc |
|
5 |
0.31 |
|
Compressed air |
12 |
Pressure gauge, bracket, bowl guard |
1/4 |
164.5 |
20 |
|
1.5 |
1 |
| C3010-8-W |
|
Rc |
Filter regulator (W3000-W), lubricator (L3000-W) |
5 |
0.97 |
Turbine oil class 1 ISO VG32 (spindle oil not usable) |
Compressed air |
45 |
Pressure gauge, bracket, bowl guard |
1/4 |
|
|
5～60 |
1.5 |
1 |
How to Order
Specify port size, pressure range and whether lubricated air is actually required downstream. Please confirm the full part number and options against the CKD catalog; contact us if you need help identifying the right model.

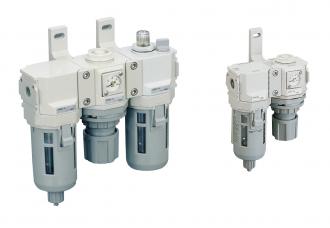

Product image is representative of the CKD series; appearance varies by size and model.
About CKD
CKD Corporation is a Japanese manufacturer of pneumatic and fluid control components, including solenoid valves, process valves, air cylinders, air preparation units (FRL), fittings and flow control devices.
