Description
CKD DVL-S — Needle Valve (with Dial, Built-in Check Valve Type), genuine CKD product.
Overview
This CKD needle valve provides fine manual adjustment of air flow, with a numbered dial to repeat settings and a built-in check valve for free flow in the reverse direction. It is used to control cylinder speed or bleed rates where reproducible settings are important. Typical applications include assembly machines and test equipment.
Key Features
- Dial indication makes settings repeatable
- Built-in check valve for one-direction control
- Fine needle for precise flow adjustment
- Compact in-line body
Specifications
| Part No. |
Fluid |
Fluid Temp. (℃) |
Flow Range |
Flow Rate (L/min(ANR)) |
Applicable Tube O.D. D (Ømm) |
Mass (g) |
Operating Pressure |
| DVL-S-06-H44-020 |
Compressed air |
5～60 |
18~440 [[liter]]/min (controlled flow) |
Free: 170, controlled: 18 |
4 |
54 |
0.1～1MPa |
| DVL-S-06-H44-080 |
Compressed air |
5～60 |
18~440 [[liter]]/min (controlled flow) |
Free: 170, controlled 80 |
4 |
54 |
0.1～1MPa |
| DVL-S-06-H66-020 |
Compressed air |
5～60 |
18~440 [[liter]]/min (controlled flow) |
Free: 300, controlled: 18 |
6 |
48 |
0.1～1MPa |
| DVL-S-06-H66-080 |
Compressed air |
5～60 |
18~440 [[liter]]/min (controlled flow) |
Free: 300, controlled 80 |
6 |
48 |
0.1～1MPa |
| DVL-S-06-H66-160 |
Compressed air |
5～60 |
18~440 [[liter]]/min (controlled flow) |
|
6 |
48 |
0.1～1MPa |
| DVL-S-08-H66-240 |
Compressed air |
5～60 |
18~440 [[liter]]/min (controlled flow) |
|
6 |
60 |
0.1～1MPa |
| DVL-S-08-H88-240 |
Compressed air |
5～60 |
18~440 [[liter]]/min (controlled flow) |
Free: 550, controlled 240 |
8 |
61 |
0.1～1MPa |
| DVL-S-10-H1010-400 |
Compressed air |
5～60 |
18~440 [[liter]]/min (controlled flow) |
Free: 1100, controlled 440 |
10 |
86 |
0.1～1MPa |
| DVL-S-10-H1212-400 |
Compressed air |
5～60 |
18~440 [[liter]]/min (controlled flow) |
|
12 |
88 |
0.1～1MPa |
| DVL-S-10-H88-400 |
Compressed air |
5～60 |
18~440 [[liter]]/min (controlled flow) |
|
8 |
82 |
0.1～1MPa |
How to Order
Specify connection size, flow control direction and the required adjustment range. Please confirm the full part number and options against the CKD catalog; contact us if you need help identifying the right model.

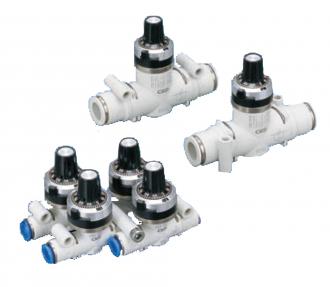

Product image is representative of the CKD series; appearance varies by size and model.
