Description
CKD C — FRL Combination Clean Air Unit, genuine CKD product.
Overview
The CKD FRL combination clean air unit packages a filter, regulator and, depending on model, lubricator or mist separator into one assembly. Compressed air is cleaned and set to the required pressure before entering machine circuits. It is the standard air preparation solution at the inlet of pneumatic machinery and workstations.
Key Features
- Pre-assembled modules save installation time
- Filter, regulation and conditioning in one line
- Gauge and bracket options available
- Sizes matched to equipment air consumption
Specifications
| Part No. |
Fluid |
Operating Temp. Range (˚C) |
Filtration Rating (㎛) |
Drain Capacity (cm3) |
Max. Operating Pressure (MPa) |
Port Size (Rc) |
Set Pressure Range (MPa) |
Accessories |
Drain Discharge |
Exhaust Device |
Reservoir Capacity (cm3) |
Applicable Oil |
Min. Drip Flow Rate (m3/min) (ANR) |
Flow Direction |
Thread Type |
Overall Length (mm) |
Pressure Gauge |
Type |
Mass (kg) |
| C1000-8-W |
Compressed air |
|
5 |
|
|
1/4 |
|
Pressure gauge, bracket, bowl guard |
Filter with manual drain cock, lubricator, without manual cock |
With relief mechanism |
20 |
Turbine oil class 1 ISO VG32 (spindle oil not usable) |
0.015 |
|
Rc |
141 |
|
|
0.41 |
| C3000-10-W |
Compressed air |
5～60 |
5 |
45 |
1 |
3/8 |
|
|
|
With relief mechanism |
|
Turbine oil class 1 ISO VG32 (spindle oil not usable) |
0.03 |
|
Rc |
202 |
|
|
1.15 |
| C3000-8-W |
|
|
5 |
45 |
|
|
0.05～0.85 |
Pressure gauge, bracket, bowl guard |
Filter with manual drain cock, lubricator, without manual cock |
With relief mechanism |
85 |
Turbine oil class 1 ISO VG32 (spindle oil not usable) |
|
Standard flow (left→right) |
|
|
Standard pressure gauge (with G401-W) |
White type |
1.15 |
| C4000-10-W |
Compressed air |
5～60 |
|
80 |
|
|
0.05～0.85 |
Pressure gauge, bracket, bowl guard |
|
With relief mechanism |
170 |
|
|
Standard flow (left→right) |
|
225 |
Standard pressure gauge (with G401-W) |
White type |
1.7 |
| C4000-15-W |
Compressed air |
5～60 |
|
80 |
1 |
1/2 |
|
|
Filter with manual drain cock, lubricator, without manual cock |
With relief mechanism |
|
Turbine oil class 1 ISO VG32 (spindle oil not usable) |
|
Standard flow (left→right) |
|
225 |
Standard pressure gauge (with G401-W) |
|
1.7 |
How to Order
Specify body size, port size, filtration grade and whether a lubricator is needed. Please confirm the full part number and options against the CKD catalog; contact us if you need help identifying the right model.

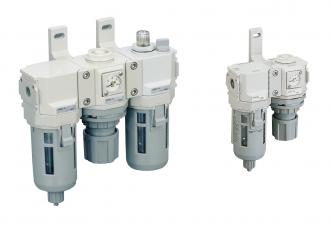

Product image is representative of the CKD series; appearance varies by size and model.
About CKD
CKD Corporation is a Japanese manufacturer of pneumatic and fluid control components, including solenoid valves, process valves, air cylinders, air preparation units (FRL), fittings and flow control devices.
