Description
CKD C2000-10-W-F1 — FRL Combination (with Auto Drain), genuine CKD product.
Overview
The CKD C2000 FRL combination joins a filter, regulator and lubricator in one modular unit, with an automatic drain on the filter bowl. It cleans compressed air, sets a stable downstream pressure and adds lubricant mist where needed. It is typically installed at the air inlet of a machine or work cell.
Key Features
- Filter, regulator and lubricator in one assembly
- Automatic drain on the filter stage
- Pressure gauge for setting downstream pressure
- Modular construction allows unit replacement
Specifications
| Part No. |
Fluid |
Port Size |
Operating Pressure (MPa) |
Mass (kg) |
Exhaust Device |
Filtration Rating (㎛) |
Thread Type |
Drain Discharge |
Air Flow Capacity (m3/min) (ANR) |
Applicable Oil |
Set Pressure (MPa) |
Reservoir Capacity (cm3) |
| C2000-10-W-F1 |
Air |
Rc3/8 |
1 |
1.01 |
With relief mechanism |
5 |
Rc |
Auto drain |
1.7 |
Turbine oil class 1 (ISO VG#32 equivalent) |
0.05～0.85 |
85 |
How to Order
Specify port size, regulator pressure range, drain type and whether a gauge is included. Please confirm the full part number and options against the CKD catalog; contact us if you need help identifying the right model.

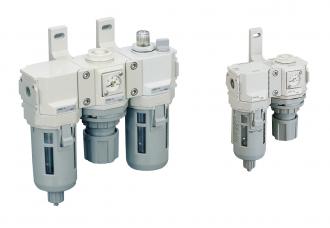

Product image is representative of the CKD series; appearance varies by size and model.
About CKD
CKD Corporation is a Japanese manufacturer of pneumatic and fluid control components, including solenoid valves, process valves, air cylinders, air preparation units (FRL), fittings and flow control devices.
Ordering & Shipping
- Genuine CKD product sourced through Korean distribution
- Ships worldwide from South Korea by FedEx International Priority Express
- Lead time varies by model; please inquire for exact delivery
- Import duties and taxes are payable by the recipient
- Bulk and trade pricing available on request
