Description
CKD W — Filter Regulator (Selex), genuine CKD product.
Overview
The CKD Selex filter regulator removes contaminants from compressed air and then regulates it to a set outlet pressure in a single modular unit. This model uses a manual or standard drain arrangement rather than the auto drain version. It is used at the point of use on pneumatic equipment where space and piping should be minimized.
Key Features
- Combined filtration and pressure regulation
- Modular connection with Selex lubricators and accessories
- Pressure gauge port for visual setting
- Bowl removable for element maintenance
Specifications
| Part No. |
Thread Type |
Type |
Operating Temp. Range (˚C) |
Operating Pressure (MPa) |
Drain Discharge |
Filtration Rating (㎛) |
Fluid Temp. (℃) |
Drain Capacity (cm3) |
Set Pressure (MPa) |
Port Size (Rc) |
Relief |
Air Flow Capacity (m3/min) (ANR) |
Set Pressure Range (MPa) |
Max. Operating Pressure (MPa) |
Mass (kg) |
Pressure Gauge |
Fluid |
Accessories |
Port Size |
Overall Length (mm) |
| W1000-6-W |
Rc |
Standard air flow (left⇒right) |
|
|
Manual |
5 |
|
12 |
|
1/8 |
With relief mechanism |
|
0.05～0.85 |
1 |
0.175 |
With standard pressure gauge (G401-W) |
Compressed air |
|
|
|
| W1000-8-W |
Rc |
|
5～60 |
|
Manual |
5 |
|
12 |
|
1/4 |
With relief mechanism |
|
0.05～0.85 |
|
0.175 |
With standard pressure gauge (G401-W) |
|
Pressure gauge, bowl guard |
|
164.5 |
| W2000-10-W |
Rc |
|
|
1 |
With manual drain cock |
5 |
5～60 |
25 |
0.05～0.85 |
|
With relief mechanism |
2.0 |
|
|
|
With standard pressure gauge (G401-W) |
Compressed air |
|
Rc3/8 |
|
| W2000-8-W |
Rc |
|
|
1 |
With manual drain cock |
5 |
5～60 |
25 |
0.05～0.85 |
|
With relief mechanism |
1.5 |
|
|
|
With standard pressure gauge (G401-W) |
Compressed air |
|
Rc1/4 |
|
| W3000-10-W |
Rc |
Standard air flow (left⇒right) |
5～60 |
|
Manual |
5 |
|
|
|
3/8 |
With relief mechanism |
|
0.05～0.85 |
|
|
With standard pressure gauge (G401-W) |
Compressed air |
Pressure gauge, bowl guard |
|
251 |
| W3000-8-W |
Rc |
|
|
|
Manual |
5 |
|
45 |
|
|
With relief mechanism |
|
0.05～0.85 |
1 |
0.6 |
With standard pressure gauge (G401-W) |
Compressed air |
Pressure gauge, bowl guard |
|
251 |
| W4000-10-W |
|
Standard air flow (left⇒right) |
5～60 |
|
Manual |
5 |
|
80 |
|
|
With relief mechanism |
|
|
1 |
0.9 |
With standard pressure gauge (G401-W) |
Compressed air |
Pressure gauge, bowl guard |
|
280 |
| W4000-15-W |
Rc |
Standard air flow (left⇒right) |
|
|
Manual |
5 |
|
80 |
|
1/2 |
With relief mechanism |
|
0.05～0.85 |
1 |
|
With standard pressure gauge (G401-W) |
|
Pressure gauge, bowl guard |
|
280 |
| W4000-8-W |
Rc |
|
5～60 |
|
Manual |
5 |
|
|
|
|
With relief mechanism |
|
0.05～0.85 |
1 |
0.9 |
With standard pressure gauge (G401-W) |
Compressed air |
Pressure gauge, bowl guard |
|
280 |
| W8000-20-W |
Rc |
|
5～60 |
|
Manual |
5 |
|
80(MAX170) |
|
3/4 |
With relief mechanism |
|
|
1 |
2 |
With standard pressure gauge (G401-W) |
Compressed air |
Pressure gauge, bowl guard |
|
|
| W8000-25-W |
Rc |
|
5～60 |
|
Manual |
5 |
|
80(MAX170) |
|
1 |
With relief mechanism |
|
0.05～0.85 |
|
2 |
With standard pressure gauge (G401-W) |
Compressed air |
Pressure gauge, bowl guard |
|
|
How to Order
Confirm port size, set pressure range, filtration rating and drain type. Please confirm the full part number and options against the CKD catalog; contact us if you need help identifying the right model.

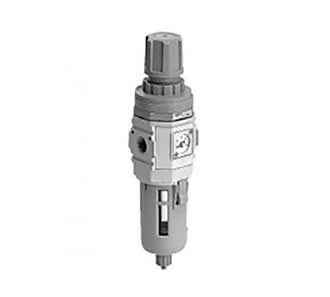

Product image is representative of the CKD series; appearance varies by size and model.
About CKD
CKD Corporation is a Japanese manufacturer of pneumatic and fluid control components, including solenoid valves, process valves, air cylinders, air preparation units (FRL), fittings and flow control devices.
Ordering & Shipping
- Genuine CKD product sourced through Korean distribution
- Ships worldwide from South Korea by FedEx International Priority Express
- Lead time varies by model; please inquire for exact delivery
- Import duties and taxes are payable by the recipient
- Bulk and trade pricing available on request
