Description
CKD 4F310E-08-TP-AC100V — Pilot Operated Explosion-Proof 5-Port Valve 4F Series (Single), genuine CKD product.
Overview
This explosion-proof 5-port pilot operated valve belongs to the CKD 4F Series and is intended for hazardous areas where flammable gases or vapors may be present. An explosion-proof solenoid shifts the pilot to switch the main spool for double-acting cylinders. It is used in chemical plants, paint shops, refineries and other classified locations.
Key Features
- Explosion-proof solenoid construction for hazardous areas
- Pilot operated spool for high flow switching
- Single solenoid configuration with spring return
- Conduit-style electrical connection
Specifications
| Part No. |
No. of Ports |
Fluid Temp. (℃) |
Operating Pressure Range (MPa) |
Fluid |
Ambient Temp. (℃) |
| 4F310E-08-TP-AC100V |
5 |
5～60 |
0.1～1 |
Air |
-10~60 (no freezing) |
How to Order
Check the hazardous area classification, coil voltage, port size and wiring entry type. Please confirm the full part number and options against the CKD catalog; contact us if you need help identifying the right model.

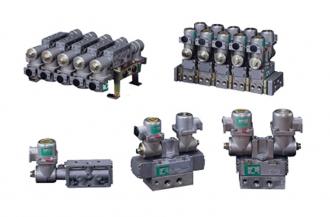

Product image is representative of the CKD series; appearance varies by size and model.
About CKD
CKD Corporation is a Japanese manufacturer of pneumatic and fluid control components, including solenoid valves, process valves, air cylinders, air preparation units (FRL), fittings and flow control devices.
