Description
CKD DSC — Speed Controller with Dial DSC, genuine CKD product.
Overview
The CKD DSC Series speed controller with dial adds a numbered scale to the flow adjustment so settings can be read and reproduced. Like other speed controllers, it throttles exhaust or supply air to set cylinder speed, with a check valve for free flow in the opposite direction. It helps standardize setup across multiple machines and after maintenance.
Key Features
- Dial scale for repeatable speed settings
- Integral push-in fitting for tubing
- One-way flow control with built-in check valve
Specifications
| Part No. |
Material (Body) |
Thread Type |
Ambient Temp. (℃) |
Hex Across Flats (mm) |
Dim. A (mm) |
Mass (g) |
Port Size |
Body Shape |
Controlled Flow Effective Area (mm2) |
Control Direction |
Fluid Temp. (℃) |
Flow Rate (L/min) |
Connection Method |
Dim. A, Locked (mm) |
Fluid |
Dim. A, Adjusting (mm) |
Tube Outer Diameter (Ø) |
Operating Pressure Range (MPa) |
Cross-Sectional Area (㎟) |
| DSC-6-6 |
Polybutylene terephthalate |
R |
|
|
Locked: 51, adjusting: 54 |
34 |
|
Elbow |
3 |
|
5~60 (no freezing) |
200 |
|
51 |
|
54 |
|
0.05～1.0 |
3.0 |
| DSC-6-8 |
Polybutylene terephthalate |
R |
|
17 |
Locked: 51, adjusting: 54 |
35 |
R1/8 |
|
3 |
|
5~60 (no freezing) |
|
R×tube OD |
|
Compressed air |
54 |
|
0.05～1.0 |
|
| DSC-8-6 |
Polybutylene terephthalate |
R |
0~60 (no freezing) |
17 |
Locked: 55.5, adjusting: 58.5 |
45 |
|
|
|
Meter-out |
5~60 (no freezing) |
|
|
|
Compressed air |
58.5 |
6 |
|
5.0 |
| DSC-8-8 |
|
|
|
|
|
46 |
R1/4 |
Elbow |
6 |
Meter-out |
5~60 (no freezing) |
|
R×tube OD |
|
Compressed air |
58.5 |
8 |
0.05～1.0 |
6.0 |
How to Order
Select port thread size and tube diameter, and confirm meter-in or meter-out function. Please confirm the full part number and options against the CKD catalog; contact us if you need help identifying the right model.

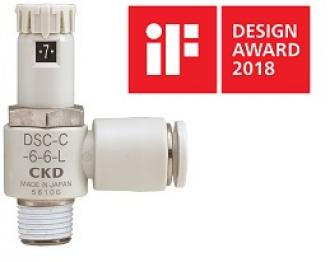

Product image is representative of the CKD series; appearance varies by size and model.
About CKD
CKD Corporation is a Japanese manufacturer of pneumatic and fluid control components, including solenoid valves, process valves, air cylinders, air preparation units (FRL), fittings and flow control devices.
