Description
CKD RP1000-8-0 — Precision Regulator RP1000, genuine CKD product.
Overview
The CKD RP1000 is a precision regulator that holds downstream air pressure very stably, even when the supply pressure or flow fluctuates. It uses a sensitive diaphragm and continuous bleed to correct small deviations quickly. Typical uses include balancing loads, test benches, air bearings, and instruments that need fine pressure control.
Key Features
- High setting accuracy for precise pressure control
- Fast response to small pressure deviations
- Compact body with gauge port
- Several set pressure ranges available
Specifications
| Part No. |
Ambient and Fluid Temp. (℃) |
Air Consumption (L/min ANR) |
Fluid |
Pressure Range (MPa) |
Set Pressure Range (MPa) |
Sensitivity |
Mass (kg) |
Proof Pressure (MPa) |
Overall Length (mm) |
Thread Type |
Accessories |
Max. Operating Pressure (MPa) |
Repeatability |
Min. Operating Pressure (MPa) |
Port Size |
Pressure Gauge Diameter (mm) |
| RP1000-8-02 |
|
1.3 or less |
|
MAX.0.2 |
|
Within 0.1% of full span |
250 |
1.5 |
Approx. 99 (at set pressure 0MPa) |
Rc |
Without attachment |
1 |
|
Set pressure +0.1 |
Rc1/4 |
Rc1/8 |
| RP1000-8-02-G49P |
-5~60 (no freezing) |
1.3 or less |
|
MAX.0.2 |
0.003～0.2 |
Within 0.1% of full span |
250 |
1.5 |
Approx. 99 (at set pressure 0MPa) |
|
|
1 |
|
Set pressure +0.1 |
Rc1/4 |
Rc1/8 |
| RP1000-8-04 |
-5~60 (no freezing) |
1.3 or less |
Compressed clean air |
MAX.0.4 |
0.005～0.4 |
|
|
1.5 |
Approx. 99 (at set pressure 0MPa) |
Rc |
Without attachment |
|
|
Set pressure +0.1 |
Rc1/4 |
Rc1/8 |
| RP1000-8-04-G49P |
-5~60 (no freezing) |
|
Compressed clean air |
MAX.0.4 |
|
|
250 |
1.5 |
Approx. 99 (at set pressure 0MPa) |
Rc |
Pressure gauge (G49D-6-□) |
|
Within ±0.5% of full span |
Set pressure +0.1 |
Rc1/4 |
Rc1/8 |
| RP1000-8-07 |
-5~60 (no freezing) |
3.4 or less |
Compressed clean air |
MAX.0.7 |
0.005～0.7 |
Within 0.1% of full span |
250 |
1.5 |
|
|
|
1 |
Within ±0.5% of full span |
|
Rc1/4 |
Rc1/8 |
| RP1000-8-07-G49P |
|
|
|
MAX.0.7 |
|
Within 0.1% of full span |
250 |
1.5 |
Approx. 99 (at set pressure 0MPa) |
Rc |
Pressure gauge (G49D-6-□) |
1 |
Within ±0.5% of full span |
Set pressure +0.1 |
Rc1/4 |
Rc1/8 |
How to Order
Select the set pressure range and port size, and confirm gauge requirements. Please confirm the full part number and options against the CKD catalog; contact us if you need help identifying the right model.

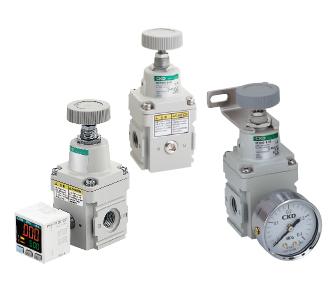

Product image is representative of the CKD series; appearance varies by size and model.
About CKD
CKD Corporation is a Japanese manufacturer of pneumatic and fluid control components, including solenoid valves, process valves, air cylinders, air preparation units (FRL), fittings and flow control devices.
Ordering & Shipping
- Genuine CKD product sourced through Korean distribution
- Ships worldwide from South Korea by FedEx International Priority Express
- Lead time varies by model; please inquire for exact delivery
- Import duties and taxes are payable by the recipient
- Bulk and trade pricing available on request
- High-value or heavy item: online checkout is disabled. Please request a quote for freight and pricing.
