CKD G45D — Pressure Gauge with Limit Mark G45D, genuine CKD product.
Overview
The CKD G45D is a pressure gauge with a limit mark that lets operators see at a glance whether pressure is within the correct range. It is mounted on regulators or manifolds to show set pressure in pneumatic circuits. Visual range indication supports daily checks on production machinery.
Key Features
- Limit mark shows the acceptable pressure band
- Bourdon tube mechanism for reliable indication
- Compact dial for mounting on air preparation units
- Simple threaded connection
Specifications
| Part No. |
View |
Port Size |
Fluid Temp. (℃) |
Accuracy |
Shape |
Display Unit |
Fluid |
Pressure Range (MPa) |
Ambient Temp. (℃) |
Mass (g) |
| G45D-6-P10 |
0~1.0MPa (pressure) |
R1/8 |
5～60 |
JIS class 2.5 equivalent |
DT type (rear thread, square rim) |
Φ39 |
Compressed air |
0～1.0 |
5～60 |
74 |
| G45D-8-P10 |
0~1.0MPa (pressure) |
R1/4 |
5～60 |
JIS class 2.5 equivalent |
DT type (rear thread, square rim) |
Φ39 |
Compressed air |
0～1.0 |
5～60 |
74 |
How to Order
Check the pressure range, connection thread size and dial diameter. Please confirm the full part number and options against the CKD catalog; contact us if you need help identifying the right model.

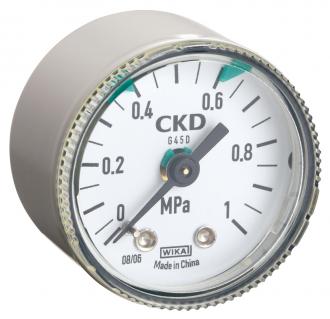

Product image is representative of the CKD series; appearance varies by size and model.
