Description
CKD GWS6-M5-S — New Joint GW Fitting (Male Straight), genuine CKD product.
Overview
The CKD GW male straight fitting is a push-in tube connector with a threaded male end, used to join nylon or polyurethane tubing to valves, cylinders and manifolds. Tube is inserted and held by an internal collet, and released by pushing the release ring. It is common throughout pneumatic piping on automation equipment.
Key Features
- Push-in connection for quick tube fitting
- Male thread with sealing for leak-free connection
- Release ring for easy tube removal
- Compact straight body
Specifications
| Part No. |
Thread Type |
Dim. A (mm) |
Port Size |
Shape |
Vacuum Performance (kPa) |
Tube Outer Diameter (Ø) |
Dim. K (Ømm) |
Cross-Sectional Area (㎟) |
Applicable Pipe O.D. (Ømm) |
Max. Operating Pressure (MPa) |
Mass (g) |
| GWS6-M5-S |
M |
3.4 |
M5×0.8 |
One-end straight |
-100 |
6 |
9.9 |
4.4 |
6 |
1 |
4 |
How to Order
Check tube outside diameter and thread size of the mating port. Please confirm the full part number and options against the CKD catalog; contact us if you need help identifying the right model.

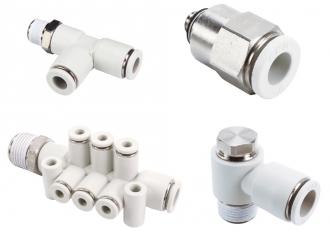

Product image is representative of the CKD series; appearance varies by size and model.
About CKD
CKD Corporation is a Japanese manufacturer of pneumatic and fluid control components, including solenoid valves, process valves, air cylinders, air preparation units (FRL), fittings and flow control devices.
Ordering & Shipping
- Genuine CKD product sourced through Korean distribution
- Ships worldwide from South Korea by FedEx International Priority Express
- Lead time varies by model; please inquire for exact delivery
- Import duties and taxes are payable by the recipient
- Bulk and trade pricing available on request
