Description
CKD GWS — New Joint GW Fitting (Female Straight), genuine CKD product.
Overview
The New Joint GW female straight fitting is a CKD push-in tube connector with a female thread on one end. It allows pneumatic tubing to be connected to male-threaded components quickly, without tools. These fittings are used throughout automation equipment to link tubes to valves, cylinders, sensors and manifolds.
Key Features
- Push-in connection for fast tube installation
- Female thread for male-threaded components
- Release sleeve allows easy tube removal
- Compact straight body for tight layouts
Specifications
| Part No. |
Size M (mm) |
Size (L, mm) |
Fluid |
Min. Inner Diameter (mm) |
Cross-Sectional Area (㎟) |
Dim. l (mm) |
Tube Outer Diameter (Ø) |
Dim. A (mm) |
Operating Temp. (˚C) |
Applicable Pipe O.D. (Ømm) |
Mass (g) |
Port Size |
Thread Type |
Dim. B (mm) |
Max. Operating Pressure (MPa) |
Dim. H (mm) |
Vacuum Performance (kPa) |
| GWS6-6-M |
Rc1/8 |
|
Compressed air |
4 |
|
11 |
6 |
8 |
|
6 |
|
|
R |
17.5 |
|
14 |
-100 |
| GWS6-8-M |
Rc1/4 |
|
Compressed air |
4 |
10.3 |
14 |
|
|
-10~60 (no freezing) |
6 |
24 |
R1/4 |
|
|
1 |
17 |
|
| GWS8-8-M |
Rc1/4 |
31.5 |
|
6 |
|
|
8 |
11 |
|
|
27 |
R1/4 |
|
19 |
1 |
17 |
-100 |
How to Order
Match tube outside diameter and thread size to the connected component. Please confirm the full part number and options against the CKD catalog; contact us if you need help identifying the right model.

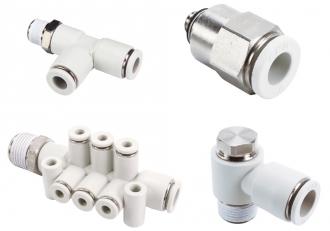

Product image is representative of the CKD series; appearance varies by size and model.
About CKD
CKD Corporation is a Japanese manufacturer of pneumatic and fluid control components, including solenoid valves, process valves, air cylinders, air preparation units (FRL), fittings and flow control devices.
Ordering & Shipping
- Genuine CKD product sourced through Korean distribution
- Ships worldwide from South Korea by FedEx International Priority Express
- Lead time varies by model; please inquire for exact delivery
- Import duties and taxes are payable by the recipient
- Bulk and trade pricing available on request
