CKD GWS — New Joint GW Fitting (Union Straight), Sold Individually, genuine CKD product.
Overview
The CKD GW Series New Joint union straight is a push-in fitting that joins two tubes of the same diameter in a straight line. Tubes are inserted and held by a collet, and released by pushing the release ring. It is used for extending or repairing tubing runs in pneumatic systems. This item is sold individually.
Key Features
- Push-in connection on both ends
- Quick tube release by pressing the ring
- Compact body for neat tube routing
Specifications
| Part No. |
Min. Inner Diameter (mm) |
Size (L, mm) |
Cross-Sectional Area (㎟) |
Max. Operating Pressure (MPa) |
Dim. B (mm) |
Applicable Pipe O.D. (Ømm) |
Fluid |
Tube Outer Diameter (Ø) |
Shape |
Vacuum Performance (kPa) |
Mass (g) |
Dim. C (mm) |
Operating Temp. (˚C) |
| GWS10-0 |
8 |
45 |
30 |
|
21.5 |
|
Compressed air |
10 |
Straight |
-100 |
13 |
17.5 |
-10~60 (no freezing) |
| GWS12-0 |
10 |
47.5 |
35 |
1 |
23 |
12 |
Compressed air |
12 |
Straight |
-100 |
|
20 |
|
| GWS4-0 |
2.5 |
33.5 |
4 |
1 |
16 |
4 |
|
4 |
Straight |
-100 |
|
10 |
-10~60 (no freezing) |
| GWS6-0 |
4 |
36.5 |
10 |
1 |
17.5 |
6 |
Compressed air |
6 |
Straight |
|
6 |
|
-10~60 (no freezing) |
| GWS8-0 |
6 |
39.5 |
22 |
1 |
19 |
|
Compressed air |
8 |
Straight |
-100 |
|
14.5 |
-10~60 (no freezing) |
How to Order
Select the fitting according to the outside diameter of the tube. Please confirm the full part number and options against the CKD catalog; contact us if you need help identifying the right model.

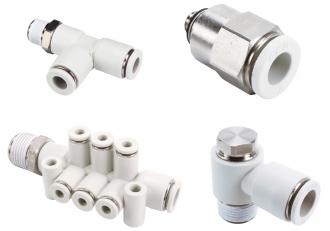

Product image is representative of the CKD series; appearance varies by size and model.
