Description
CKD GWL — New Joint GW Fitting (Male Elbow), genuine CKD product.
Overview
The CKD GW male elbow is a 90-degree push-in fitting that connects pneumatic tubing to a threaded port while turning the tube direction. The elbow body often rotates after installation, simplifying tube routing in tight spaces. It is used on cylinders, valves and manifolds in compact machinery.
Key Features
- 90-degree body for space-saving tube routing
- One-touch tube insertion and release
- Threaded male end with seal
- Swivel body aids alignment
Specifications
| Part No. |
Dim. H (mm) |
Fluid |
Thread Type |
Vacuum Performance (kPa) |
Cross-Sectional Area (㎟) |
L2(mm) |
Port Size |
Min. Inner Diameter (mm) |
Dim. B (mm) |
Thread Size (mm) |
Tube Outer Diameter (Ø) |
Mass (g) |
Shape |
L1(mm) |
Dim. C (mm) |
Applicable Pipe O.D. (Ømm) |
Max. Operating Pressure (MPa) |
Dim. A (mm) |
Operating Temp. (˚C) |
| GWL10-10 |
|
Compressed air |
R |
-100 |
|
|
|
8 |
21.5 |
R3/8 |
|
33 |
One-end elbow |
32.5 |
|
10 |
|
12 |
|
| GWL10-15 |
22 |
Compressed air |
|
-100 |
27 |
|
R1/2 |
8 |
|
|
10 |
49 |
One-end elbow |
|
|
10 |
|
|
-10~60 (no freezing) |
| GWL10-6 |
17 |
Compressed air |
|
|
|
27 |
|
6.5 |
|
R1/8 |
|
26 |
One-end elbow |
|
|
10 |
1 |
8 |
-10~60 (no freezing) |
| GWL10-8 |
17 |
|
|
-100 |
|
27 |
R1/4 |
8 |
21.5 |
|
|
28 |
|
31 |
17.5 |
10 |
|
|
-10~60 (no freezing) |
| GWL12-10 |
19 |
Compressed air |
R |
|
35 |
29.5 |
R3/8 |
|
23 |
R3/8 |
|
|
One-end elbow |
34.5 |
|
|
|
|
-10~60 (no freezing) |
| GWL12-15 |
22 |
|
R |
|
|
|
R1/2 |
9 |
23 |
R1/2 |
12 |
56 |
One-end elbow |
|
|
|
|
15 |
-10~60 (no freezing) |
| GWL4-6 |
10 |
|
|
-100 |
|
18.5 |
R1/8 |
2.5 |
|
|
|
8 |
One-end elbow |
20.5 |
10 |
|
1 |
8 |
|
| GWL4-M5 |
8 |
Compressed air |
M |
|
3.2 |
18 |
|
|
16 |
|
4 |
|
|
|
10 |
|
1 |
3.4 |
-10~60 (no freezing) |
| GWL6-10 |
17 |
|
|
|
8 |
|
R3/8 |
4 |
|
|
6 |
26 |
One-end elbow |
29 |
12.5 |
6 |
|
12 |
|
| GWL6-6 |
12 |
|
R |
-100 |
8 |
21 |
R1/8 |
|
|
R1/8 |
|
|
One-end elbow |
24 |
12.5 |
|
|
|
-10~60 (no freezing) |
| GWL6-8 |
|
Compressed air |
R |
-100 |
8 |
21 |
R1/4 |
4 |
|
|
6 |
|
One-end elbow |
27.5 |
12.5 |
|
|
|
-10~60 (no freezing) |
| GWL6-M5 |
|
Compressed air |
|
-100 |
4.2 |
20 |
|
2.5 |
17.5 |
M5×0.8 |
6 |
7 |
|
|
|
6 |
1 |
3.4 |
|
| GWL8-10 |
17 |
|
|
|
18 |
23.5 |
R3/8 |
|
19 |
R3/8 |
|
|
One-end elbow |
|
14.5 |
|
1 |
12 |
-10~60 (no freezing) |
| GWL8-6 |
14 |
|
|
-100 |
18 |
23.5 |
R1/8 |
|
19 |
|
8 |
17 |
One-end elbow |
25.5 |
14.5 |
|
1 |
|
|
| GWL8-8 |
14 |
Compressed air |
|
-100 |
18 |
23.5 |
|
6 |
19 |
|
8 |
|
One-end elbow |
|
14.5 |
|
|
|
-10~60 (no freezing) |
How to Order
Confirm tube outer diameter and the port thread size. Please confirm the full part number and options against the CKD catalog; contact us if you need help identifying the right model.

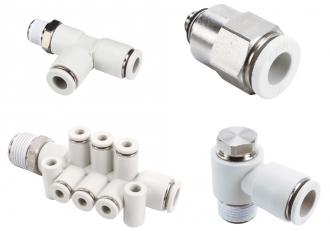

Product image is representative of the CKD series; appearance varies by size and model.
About CKD
CKD Corporation is a Japanese manufacturer of pneumatic and fluid control components, including solenoid valves, process valves, air cylinders, air preparation units (FRL), fittings and flow control devices.
Ordering & Shipping
- Genuine CKD product sourced through Korean distribution
- Ships worldwide from South Korea by FedEx International Priority Express
- Lead time varies by model; please inquire for exact delivery
- Import duties and taxes are payable by the recipient
- Bulk and trade pricing available on request
