CKD GWT — New Joint GW Fitting (Tee), Sold Individually, genuine CKD product.
Overview
This tee fitting from the CKD New Joint GW range connects three tubes of the same size, branching one air supply into two lines. Push-in ports grip the tube securely and release it with a collet press. Supplied individually, it is a practical choice for distributing air across pneumatic actuators and devices.
Key Features
- Push-in connection on all three ports
- Branches one line into two outlets
- Tool-free tube insertion and removal
- Supplied as a single fitting
Specifications
| Part No. |
Size (L, mm) |
N(mm) |
Shape |
Max. Operating Pressure (MPa) |
Fluid |
Min. Inner Diameter (mm) |
Operating Temp. (˚C) |
Applicable Pipe O.D. (Ømm) |
Cross-Sectional Area (㎟) |
Mass (g) |
Tube Outer Diameter (Ø) |
Vacuum Performance (kPa) |
Dim. B (mm) |
Dim. C (mm) |
Dim. F (mm) |
Dim. E (mm) |
| GWT10-0 |
27 |
11 |
Tee |
1 |
|
|
|
|
30 |
23 |
10 |
-100 |
|
17.5 |
18.5 |
4.2 |
| GWT12-0 |
29.5 |
12 |
Tee |
1 |
Compressed air |
|
-10~60 (no freezing) |
12 |
|
30 |
12 |
|
23 |
20 |
21 |
|
| GWT6-0 |
21 |
8.5 |
|
1 |
Compressed air |
4 |
-10~60 (no freezing) |
6 |
9.7 |
|
6 |
|
17.5 |
|
13.5 |
|
| GWT8-0 |
23.5 |
|
Tee |
1 |
Compressed air |
6 |
-10~60 (no freezing) |
8 |
|
14 |
8 |
-100 |
19 |
|
|
4.2 |
How to Order
Confirm the tube outside diameter and working pressure for the circuit. Please confirm the full part number and options against the CKD catalog; contact us if you need help identifying the right model.

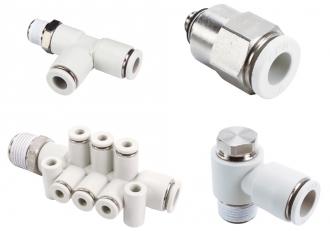

Product image is representative of the CKD series; appearance varies by size and model.
