Description
CKD SLW-20S — Silencer High Noise Reduction Compact Type SLW-20S, genuine CKD product.
Overview
The SLW-20S is a compact silencer from CKD designed for high noise reduction at valve and manifold exhaust ports. A dense porous element diffuses escaping air to cut exhaust noise while keeping back pressure low. It is suited to equipment where quiet operation is important, such as cleanrooms, offices and assembly lines.
Key Features
- High noise reduction in a compact body
- Low back pressure maintains valve response
- Direct threaded mounting on exhaust ports
- Element resists clogging under normal use
Specifications
| Part No. |
Fluid Temp. (℃) |
Dim. D (mm) |
Port Size |
Mass (g) |
Dim. C (mm) |
Operating Temp. Range (˚C) |
Applicable Cylinder Bore (Ømm) |
Dim. A (mm) |
Noise Reduction (dB) |
Material (Element) |
Color |
Dim. E (mm) |
| SLW-20S |
5~60 (no freezing) |
28 |
R3/4 |
20 |
18 |
-10~60℃ (no freezing) |
100～200 |
75.4 |
30 or more |
PP sintered resin |
White |
19 |
How to Order
Check the exhaust port thread and the valve flow rate it will serve. Please confirm the full part number and options against the CKD catalog; contact us if you need help identifying the right model.

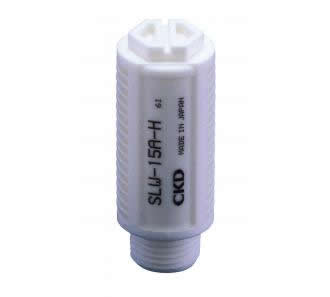

Product image is representative of the CKD series; appearance varies by size and model.
About CKD
CKD Corporation is a Japanese manufacturer of pneumatic and fluid control components, including solenoid valves, process valves, air cylinders, air preparation units (FRL), fittings and flow control devices.
Ordering & Shipping
- Genuine CKD product sourced through Korean distribution
- Ships worldwide from South Korea by FedEx International Priority Express
- Lead time varies by model; please inquire for exact delivery
- Import duties and taxes are payable by the recipient
- Bulk and trade pricing available on request
