Description
CKD 2QV — 2QV Series Quick Valve, genuine CKD product.
Overview
The CKD 2QV series quick valve is a quick exhaust valve placed close to a cylinder port to release air directly to atmosphere instead of back through the directional valve. This shortens exhaust time and increases cylinder speed. It is used where fast actuator return or stroke is needed.
Key Features
- Speeds up cylinder motion by local exhausting
- Mounted near the actuator port
- Simple construction with no electrical parts
- Reduces load on long return lines
Specifications
| Part No. |
Applicable Tube Size |
Fluid |
Withstand Pressure (MPa) |
Fluid Temp. (℃) |
Ambient Temp. (℃) |
Port Size |
Valve Type |
Angle (˚) |
Min. Operating Pressure (MPa) |
Max. Operating Pressure (MPa) |
| 2QV-06-06 |
Soft nylon tube, urethane tube |
Air |
1.5 |
0～60 |
0～60 |
One-touch fitting Φ6 - one-touch fitting Φ6 |
2-way valve |
Switching 90 |
-0.1 |
1 |
| 2QV-12-12 |
Soft nylon tube, urethane tube |
Air |
1.5 |
0～60 |
0～60 |
One-touch fitting Φ12 - one-touch fitting Φ12 |
2-way valve |
Switching 90 |
-0.1 |
1 |
How to Order
Check the port or tube size and the required exhaust flow. Please confirm the full part number and options against the CKD catalog; contact us if you need help identifying the right model.

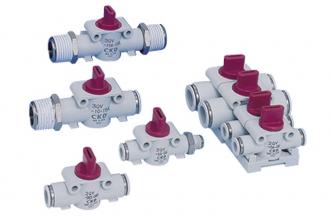

Product image is representative of the CKD series; appearance varies by size and model.
About CKD
CKD Corporation is a Japanese manufacturer of pneumatic and fluid control components, including solenoid valves, process valves, air cylinders, air preparation units (FRL), fittings and flow control devices.
