CKD USB3-6 — USB Series Compact Direct Acting 2-Port Solenoid Valve, genuine CKD product.
Overview
The CKD USB Series is a compact direct-acting 2-port solenoid valve for on/off control of small flows of air, water and other compatible fluids. The plunger acts directly on the orifice, so it operates from zero pressure differential. It is used in analytical instruments, small dispensing devices and compact machinery.
Key Features
- Small body for instrument and compact machine use
- Direct-acting, no minimum operating pressure
- DC coil options for electronic control
Specifications
| Part No. |
Fluid Temp. (℃) |
Mass (kg) |
Rated Voltage (V) |
Operating Pressure Differential Range (MPa) |
Heat Resistance Class |
Valve Seat Leakage (cm3/min) |
Mounting Orientation |
Port Size |
Fluid |
No. of Ports |
Pipe Port Size |
Orifice Diameter (Ømm) |
Operation Type |
Thread Type |
Ambient Temp. (℃) |
Cv Value |
Withstand Pressure (MPa) |
Sonic Conductance C [dm3/(s·bar)] |
B |
| USB3-6-1-AC100V |
|
|
AC100 |
0～0.9 |
|
|
|
Rc1/8 |
Air, water, dry air, low vacuum [1.33×102Pa (abs)] |
2 |
Rc1/8 |
1.6 |
Direct-acting type |
Rc |
|
|
|
|
|
| USB3-6-1-B-AC100V |
|
|
AC100 |
|
|
|
|
|
|
2 |
Rc1/8 |
|
Direct-acting type |
Rc |
|
|
|
|
|
| USB3-6-1-B-DC12V |
-10~60 (no freezing) |
0.13 |
DC12 |
|
E (molded coil: B) |
|
|
|
Air, water, dry air, low vacuum [1.33×102Pa (abs)] |
2 |
|
1.6 |
Direct-acting type |
Rc |
-20～50 |
0.09 |
2 (at water pressure) |
|
|
| USB3-6-1-B-DC24V |
|
0.13 |
DC24 |
0～0.9 |
|
0.2 or less (pneumatic) |
Free |
Rc1/8 |
|
2 |
|
|
Direct-acting type |
Rc |
|
0.09 |
2 (at water pressure) |
|
0.56 |
| USB3-6-1-DC24V |
-10~60 (no freezing) |
0.13 |
|
0～0.9 |
E (molded coil: B) |
|
Free |
Rc1/8 |
Air, water, dry air, low vacuum [1.33×102Pa (abs)] |
|
Rc1/8 |
|
Direct-acting type |
|
-20～50 |
|
2 (at water pressure) |
0.34 |
|
| USB3-6-2-B-DC24V |
-10~60 (no freezing) |
|
|
|
E (molded coil: B) |
0.2 or less (pneumatic) |
Free |
Rc1/8 |
Air, water, dry air, low vacuum [1.33×102Pa (abs)] |
2 |
Rc1/8 |
2.3 |
|
Rc |
-20～50 |
|
2 (at water pressure) |
|
|
| USB3-6-2-DC24V |
|
0.13 |
DC24 |
0～0.4 |
|
0.2 or less (pneumatic) |
|
Rc1/8 |
|
2 |
Rc1/8 |
2.3 |
|
Rc |
|
0.18 |
|
0.64 |
0.51 |
| USB3-6-3-B-DC12V |
-10~60 (no freezing) |
|
|
|
|
|
Free |
Rc1/8 |
Air, water, dry air, low vacuum [1.33×102Pa (abs)] |
|
Rc1/8 |
|
Direct-acting type |
Rc |
-20～50 |
0.3 |
2 (at water pressure) |
1.2 |
0.48 |
| USB3-6-3-DC24V |
-10~60 (no freezing) |
0.13 |
|
|
E (molded coil: B) |
0.2 or less (pneumatic) |
Free |
Rc1/8 |
|
2 |
|
|
Direct-acting type |
|
-20～50 |
0.3 |
2 (at water pressure) |
|
0.48 |
How to Order
Specify port size, orifice size, fluid and coil voltage. Please confirm the full part number and options against the CKD catalog; contact us if you need help identifying the right model.

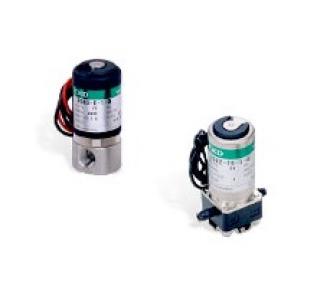

Product image is representative of the CKD series; appearance varies by size and model.
