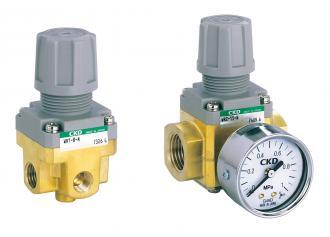

The CKD WR Series water regulator reduces and stabilizes water pressure supplied to equipment. A diaphragm and spring mechanism maintains a set downstream pressure as supply conditions change. It is used for cooling water lines, washing equipment and process water supply where constant pressure protects downstream devices.
| Part No. |
Pressure Gauge Diameter (mm) |
Relief |
Proof Pressure (MPa) |
Pressure Gauge |
Thread Type |
Fluid |
Operating Temp. Range (˚C) |
Accessories |
Overall Length (mm) |
Max. Operating Pressure (MPa) |
Set Pressure Range (MPa) |
Port Size |
| WR1-8-N |
Rc1/8 |
Non-relief type |
1.75 |
|
Rc |
General industrial clean water, compressed air |
5～60 |
None |
82 |
1 |
[Standard] 0.05~0.70 |
Rc1/4 |
| WR1-8-N-G |
Rc1/8 |
Non-relief type |
1.75 |
Pressure gauge (G49D-6-P10) |
Rc |
General industrial clean water, compressed air |
5～60 |
Pressure gauge (G49D-6-P10), pipe plug (R1/8) |
82 |
1 |
[Standard] 0.05~0.70 |
Rc1/4 |
| WR1-8-NL |
Rc1/8 |
Non-relief type |
1.75 |
|
Rc |
General industrial clean water, compressed air |
5～60 |
None |
82 |
1 |
[Low pressure] 0.02~0.35 |
Rc1/4 |
| WR1-8-NL-G |
Rc1/8 |
Non-relief type |
1.75 |
Pressure gauge (G49D-6-P04) |
Rc |
General industrial clean water, compressed air |
5～60 |
Pressure gauge (G49D-6-P10), pipe plug (R1/8) |
82 |
1 |
[Low pressure] 0.02~0.35 |
Rc1/4 |
| WR2-10-N |
Rc1/8 |
Non-relief type |
1.75 |
|
Rc |
General industrial clean water, compressed air |
5～60 |
None |
91 |
1 |
[Standard] 0.05~0.70 |
Rc3/8 |
| WR2-10-N-G |
Rc1/8 |
Non-relief type |
1.75 |
Pressure gauge (G49D-6-P10) |
Rc |
General industrial clean water, compressed air |
5～60 |
Pressure gauge (G49D-6-P10), pipe plug (R1/8) |
91 |
1 |
[Standard] 0.05~0.70 |
Rc3/8 |
| WR2-10-NL-G |
Rc1/8 |
Non-relief type |
1.75 |
Pressure gauge (G49D-6-P04) |
Rc |
General industrial clean water, compressed air |
5～60 |
Pressure gauge (G49D-6-P10), pipe plug (R1/8) |
91 |
1 |
[Low pressure] 0.02~0.35 |
Rc3/8 |
| WR2-15-N |
Rc1/8 |
Non-relief type |
1.75 |
|
Rc |
General industrial clean water, compressed air |
5～60 |
None |
91 |
1 |
[Standard] 0.05~0.70 |
Rc1/2 |
| WR2-15-N-G |
Rc1/8 |
Non-relief type |
1.75 |
Pressure gauge (G49D-6-P10) |
Rc |
General industrial clean water, compressed air |
5～60 |
Pressure gauge (G49D-6-P10), pipe plug (R1/8) |
91 |
1 |
[Standard] 0.05~0.70 |
Rc1/2 |
| WR2-15-NL |
Rc1/8 |
Non-relief type |
1.75 |
|
Rc |
General industrial clean water, compressed air |
5～60 |
None |
91 |
1 |
[Low pressure] 0.02~0.35 |
Rc1/2 |
| WR2-15-NL-G |
Rc1/8 |
Non-relief type |
1.75 |
Pressure gauge (G49D-6-P04) |
Rc |
General industrial clean water, compressed air |
5～60 |
Pressure gauge (G49D-6-P10), pipe plug (R1/8) |
91 |
1 |
[Low pressure] 0.02~0.35 |
Rc1/2 |
Confirm port size, required set-pressure range and water temperature. Please confirm the full part number and options against the CKD catalog; contact us if you need help identifying the right model.
