Description
CKD AB21-0 — AB21 Series Multirex Valve, genuine CKD product.
Overview
The CKD AB21 Series is a compact direct-acting 2-port solenoid valve in the Multirex range for general fluids such as air, water and oil. Energizing the coil lifts the plunger to open the orifice directly, enabling operation from zero differential. It provides simple on/off control in utility piping, small machines and cleaning equipment.
Key Features
- Direct-acting design works at zero pressure differential
- Compact size for small piping
- Seal materials selectable to suit the fluid
- AC and DC coil versions
Specifications
| Part No. |
Thread Type |
Lead Wire Length (mm) |
Orifice Diameter (Ømm) |
No. of Ports |
Port Size (Rc) |
Rated Voltage (V) |
Operation Type |
| AB21-01-1-A-AC200V |
Rc |
250 |
1.5 |
2 |
1/8 |
AC200 |
Direct-acting type |
| AB21-01-2-A-AC24V |
Rc |
250 |
2 |
2 |
1/8 |
AC24 |
Direct-acting type |
| AB21-01-3-AC110V |
Rc |
250 |
3 |
2 |
1/8 |
AC110 |
Direct-acting type |
| AB21-02-1-A-DC12V |
Rc |
250 |
1.5 |
2 |
1/4 |
DC12 |
Direct-acting type |
| AB21-02-2-A-AC100V |
Rc |
250 |
2 |
2 |
1/4 |
AC100 |
Direct-acting type |
| AB21-02-2-A-AC200V |
Rc |
250 |
2 |
2 |
1/4 |
AC200 |
Direct-acting type |
| AB21-02-2-A-DC24V |
Rc |
250 |
2 |
2 |
1/4 |
DC24 |
Direct-acting type |
| AB21-02-2-B-AC200V |
Rc |
250 |
2 |
2 |
1/4 |
AC200 |
Direct-acting type |
| AB21-02-3-A-AC100V |
Rc |
250 |
3 |
2 |
1/4 |
AC100 |
Direct-acting type |
| AB21-02-3-A-AC200V |
Rc |
250 |
3 |
2 |
1/4 |
AC200 |
Direct-acting type |
| AB21-02-3-A-DC12V |
Rc |
250 |
3 |
2 |
1/4 |
DC12 |
Direct-acting type |
| AB21-02-3-AC100V |
Rc |
250 |
3 |
2 |
1/4 |
AC100 |
Direct-acting type |
| AB21-02-3-AC24V |
Rc |
250 |
3 |
2 |
1/4 |
AC24 |
Direct-acting type |
| AB21-02-5-A-AC100V |
Rc |
250 |
4 |
2 |
1/4 |
AC100 |
Direct-acting type |
| AB21-02-5-A-AC110V |
Rc |
250 |
4 |
2 |
1/4 |
AC110 |
Direct-acting type |
| AB21-02-5-AC100V |
Rc |
250 |
4 |
2 |
1/4 |
AC100 |
Direct-acting type |
| AB21-02-5-AC200V |
Rc |
250 |
4 |
2 |
1/4 |
AC200 |
Direct-acting type |
| AB21-02-5-DC12V |
Rc |
250 |
4 |
2 |
1/4 |
DC12 |
Direct-acting type |
How to Order
Select port size, orifice, seal material for your fluid and coil voltage. Please confirm the full part number and options against the CKD catalog; contact us if you need help identifying the right model.

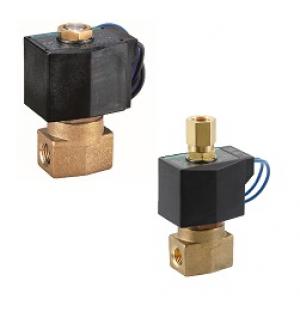

Product image is representative of the CKD series; appearance varies by size and model.
About CKD
CKD Corporation is a Japanese manufacturer of pneumatic and fluid control components, including solenoid valves, process valves, air cylinders, air preparation units (FRL), fittings and flow control devices.
Ordering & Shipping
- Genuine CKD product sourced through Korean distribution
- Ships worldwide from South Korea by FedEx International Priority Express
- Lead time varies by model; please inquire for exact delivery
- Import duties and taxes are payable by the recipient
- Bulk and trade pricing available on request
