Description
CKD AG43-02-4-AC100V — AG43E4 Series Explosion-Proof Direct Acting 3-Port Solenoid Valve, genuine CKD product.
Overview
The CKD AG43E4 Series is an explosion-proof direct-acting 3-port solenoid valve for hazardous areas where flammable gas or vapor may be present. The coil is housed in a flameproof enclosure, and the plunger switches flow directly. It is used as a pilot or actuator control valve in chemical, painting, oil and gas and similar facilities.
Key Features
- Explosion-proof coil enclosure for hazardous locations
- Direct-acting 3-port function
- Suitable as pilot valve for process valves
Specifications
| Part No. |
Ambient Temp. (℃) |
Valve Construction |
Power Consumption (W) (50/60Hz) |
Mass (kg) |
Withstand Pressure (MPa) |
Coil Housing |
Rated Voltage (V) |
Port Size |
Fluid |
Material (Seal) |
Max. Operating Pressure (MPa) |
No. of Ports |
| AG43-02-4-AC100V |
-20～60 |
Direct-acting poppet structure |
8.3/6.2 |
0.45 |
25 (at water pressure) |
Grommet lead wire |
AC100 |
1/4 |
Air, water, low vacuum, kerosene (up to 60℃) |
Nitrile rubber |
1 |
3 |
How to Order
Confirm the hazardous area classification, port size and coil voltage required at your site. Please confirm the full part number and options against the CKD catalog; contact us if you need help identifying the right model.

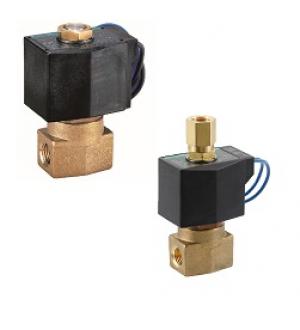

Product image is representative of the CKD series; appearance varies by size and model.
About CKD
CKD Corporation is a Japanese manufacturer of pneumatic and fluid control components, including solenoid valves, process valves, air cylinders, air preparation units (FRL), fittings and flow control devices.
Ordering & Shipping
- Genuine CKD product sourced through Korean distribution
- Ships worldwide from South Korea by FedEx International Priority Express
- Lead time varies by model; please inquire for exact delivery
- Import duties and taxes are payable by the recipient
- Bulk and trade pricing available on request
