Description
CKD AP11-10A-03A-DC24V — AP11 Series Multirex Valve (Pilot 2-Way), genuine CKD product.
Overview
The CKD AP11 Multirex is a pilot-operated 2-way solenoid valve used to switch air, water and other general fluids on and off. A pilot stage uses line pressure to open the main valve, allowing larger port sizes with modest coil power. It is applied to process lines, cooling water systems and utility equipment.
Key Features
- Pilot-operated 2-way valve construction
- Handles larger flows with small coils
- Suitable for multiple general-purpose fluids
- Threaded connections in several sizes
Specifications
| Part No. |
Thread Type |
Max. Operating Pressure (MPa) |
Port Size |
Min. Operating Pressure Differential (MPa) |
Cross-Sectional Area (㎟) |
Material (Seal) |
Pipe Port Size |
Mass (kg) |
Rated Voltage (V) |
Material (Body) |
| AP11-10A-03A-DC24V |
Rc |
1 |
3/8 |
0.05 |
- |
Nitrile rubber |
Rc3/8 |
0.9 |
DC24 |
Bronze |
How to Order
Check fluid type, port size, coil voltage and the minimum pressure differential required to operate. Please confirm the full part number and options against the CKD catalog; contact us if you need help identifying the right model.

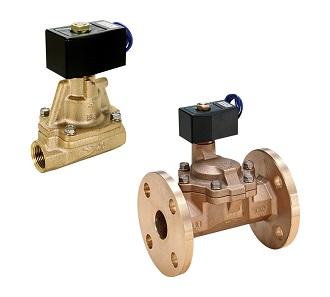

Product image is representative of the CKD series; appearance varies by size and model.
About CKD
CKD Corporation is a Japanese manufacturer of pneumatic and fluid control components, including solenoid valves, process valves, air cylinders, air preparation units (FRL), fittings and flow control devices.
Ordering & Shipping
- Genuine CKD product sourced through Korean distribution
- Ships worldwide from South Korea by FedEx International Priority Express
- Lead time varies by model; please inquire for exact delivery
- Import duties and taxes are payable by the recipient
- Bulk and trade pricing available on request
