Description
CKD CHL-H66 — CHL Series Check Valve with One-Touch Fitting, genuine CKD product.
Overview
The CKD CHL Series is a check valve with integrated one-touch fittings, allowing air to flow in one direction and blocking reverse flow. Push-in ends connect directly to tubing without extra fittings. It is used to hold pressure in circuits, prevent backflow and isolate branches in pneumatic systems.
Key Features
- Check valve blocks reverse flow
- Integrated push-in tube fittings
- Compact inline installation
- Reduces the number of fittings in a circuit
Specifications
| Part No. |
Operating Pressure Range (MPa) |
Connection Method |
Tube Outer Diameter (Ø) |
Cracking Pressure (kPa) |
Fluid |
| CHL-H66 |
0.03～1.0 |
Tube OD |
6 |
30 |
Compressed air |
How to Order
Confirm tube diameter on each side and the flow direction required. Please confirm the full part number and options against the CKD catalog; contact us if you need help identifying the right model.

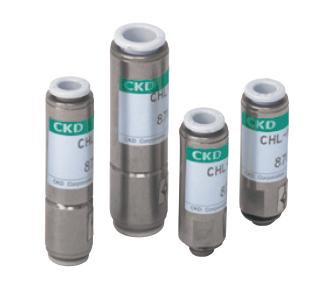

Product image is representative of the CKD series; appearance varies by size and model.
About CKD
CKD Corporation is a Japanese manufacturer of pneumatic and fluid control components, including solenoid valves, process valves, air cylinders, air preparation units (FRL), fittings and flow control devices.
Ordering & Shipping
- Genuine CKD product sourced through Korean distribution
- Ships worldwide from South Korea by FedEx International Priority Express
- Lead time varies by model; please inquire for exact delivery
- Import duties and taxes are payable by the recipient
- Bulk and trade pricing available on request
