Description
CKD DSG-25-S-AC100V — DSG Series Gas Shut-Off Valve (Quick Open Type), genuine CKD product.
Overview
The CKD DSG series is a gas shut-off solenoid valve of quick-open type used to start and stop gas supply to burners and gas equipment. The valve closes when de-energized, providing a fail-safe shut-off. It is used in boilers, furnaces, dryers and industrial combustion systems.
Key Features
- Normally closed for fail-safe shut-off
- Quick-opening action for gas supply
- Designed for fuel gas service
- Threaded or flanged connections by size
Specifications
| Part No. |
Operating Pressure Range (MPa) |
Port Size |
Options |
Cv Value |
Power Consumption (VA) |
Max. Operating Frequency (cycles/min) |
Rated Voltage (V) |
Flow Rate (m3/min[ANR]) |
Operating Time (within s) |
Ambient Temp. (℃) |
Fluid |
Pressure Resistance (MPa) |
| DSG-25-S-AC100V |
0～5 |
Rp1 |
Lead wire push specification |
13.4 |
16 |
30 or less |
AC100(50/60Hz) |
20 |
Open: 0.5, closed: 1.0 |
-20~+60 (no freezing) |
City gas, natural gas, LPG |
0.1 |
How to Order
Check gas type, port size, pressure range and coil voltage. Please confirm the full part number and options against the CKD catalog; contact us if you need help identifying the right model.

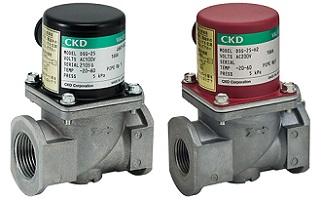

Product image is representative of the CKD series; appearance varies by size and model.
About CKD
CKD Corporation is a Japanese manufacturer of pneumatic and fluid control components, including solenoid valves, process valves, air cylinders, air preparation units (FRL), fittings and flow control devices.
