Description
CKD EH-5802-20-C — EH Series Tube for Air Fiber, Clean Type, genuine CKD product.
Overview
The CKD EH Series is a clean-type tube intended for air fiber equipment and other clean pneumatic systems. It carries compressed air while limiting particle generation from the tube material and surface, helping keep downstream air clean. It is typically used in electronics assembly, semiconductor processing, precision instruments and clean-room machinery where ordinary pneumatic tubing could introduce contamination.
Key Features
- Clean-type specification for low contamination
- Flexible tube for easy routing
- Sized for push-in fitting connections
Specifications
| Part No. |
Inner Diameter (Ømm) |
Outer Diameter (Ømm) |
Length (m) |
Fluid |
Operating Pressure Range (MPa) |
O.D. × I.D. (Ømm) |
Accuracy (mm) |
Color |
Operating Temp. Range (˚C) |
Material |
Mating Tube Size (Ømm) |
| EH-5802-20-C |
1.2 |
1.8 |
20 |
Compressed air |
-0.1～1.0 |
1.8×1.2 |
±0.1 (OD, ID) |
Transparent |
-10~+60 (no freezing) |
Special polyolefin |
1.8×1.2 (OD×ID) |
How to Order
Confirm tube outside diameter, length and material compatibility. Please confirm the full part number and options against the CKD catalog; contact us if you need help identifying the right model.

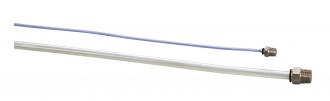

Product image is representative of the CKD series; appearance varies by size and model.
