CKD FWD11 — FWD Series Pilot Operated 2-Port Valve for Water, genuine CKD product.
Overview
The FWD Series is a CKD pilot operated 2-port solenoid valve designed for water. Pilot operation uses line pressure to move the main diaphragm, letting a small coil control large flows. It is used for cooling water, washing systems, water treatment and utility lines in factories and buildings.
Key Features
- Designed specifically for water service
- Pilot operation controls large flow with small coil
- Threaded ports for direct pipe installation
- AC and DC coil options
Specifications
| Part No. |
Rated Voltage |
Ambient Temp. (℃) |
Mounting Orientation |
Orifice Diameter (Ømm) |
Cv Value |
Enclosure Protection |
Valve Construction |
Fluid Temp. (℃) |
Port Size |
Fluid |
Operating Pressure Differential Range (MPa) |
Rated Voltage (V) |
Max. Operating Pressure (MPa) |
Withstand Pressure (MPa) |
Rated Voltage Fluctuation Range |
Thread Type |
Valve Seat Leakage (cm3/min) |
No. of Ports |
Switching Method |
| FWD11-15A-02C-AC100V |
AC100V |
-10~60 (no fluid freezing) |
Free |
15 |
|
IPX5 |
|
|
Rc1/2 |
Water (excluding sewage, agricultural water, liquid fertilizer, antifreeze) |
0.02～0.7 |
AC100 |
0.7 |
|
|
Rc |
|
2 |
|
| FWD11-15A-02C-DC24V |
|
|
Free |
15 |
6 |
|
Pilot operated poppet structure, diaphragm driven |
5~60 (no freezing) |
Rc1/2 |
Water (excluding sewage, agricultural water, liquid fertilizer, antifreeze) |
|
DC24 |
0.7 |
1.05 |
±10% |
|
0 (at water pressure) |
|
|
| FWD11-20A-02C-AC100V |
AC100V |
|
Free |
|
|
IPX5 |
|
5~60 (no freezing) |
Rc3/4 |
Water (excluding sewage, agricultural water, liquid fertilizer, antifreeze) |
0.02～0.7 |
AC100 |
0.7 |
|
|
Rc |
|
2 |
NC (open when energized) type |
| FWD11-20A-02C-DC24V |
DC24V |
-10~60 (no fluid freezing) |
Free |
|
|
IPX5 |
|
5~60 (no freezing) |
Rc3/4 |
Water (excluding sewage, agricultural water, liquid fertilizer, antifreeze) |
0.02～0.7 |
|
0.7 |
|
|
Rc |
|
2 |
NC (open when energized) type |
How to Order
Confirm port size, operating pressure range, water temperature and coil voltage. Please confirm the full part number and options against the CKD catalog; contact us if you need help identifying the right model.

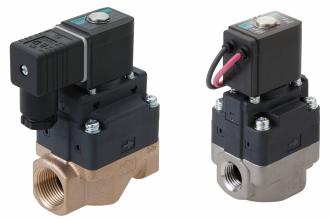

Product image is representative of the CKD series; appearance varies by size and model.
About CKD
CKD Corporation is a Japanese manufacturer of pneumatic and fluid control components, including solenoid valves, process valves, air cylinders, air preparation units (FRL), fittings and flow control devices.
Ordering & Shipping
- Genuine CKD product sourced through Korean distribution
- Ships worldwide from South Korea by FedEx International Priority Express
- Lead time varies by model; please inquire for exact delivery
- Import duties and taxes are payable by the recipient
- Bulk and trade pricing available on request
