Description
CKD G49D — G49D Series General Purpose Pressure Gauge, genuine CKD product.
Overview
The CKD G49D is a general-purpose pressure gauge for reading compressed air pressure on regulators, filter regulators and piping. A Bourdon tube mechanism drives the pointer across a clear dial. It is used wherever operators need a simple visual pressure check. Panel-mount and back-connection versions suit different installation positions on air preparation units.
Key Features
- Bourdon tube mechanism for direct reading
- Clear dial for quick checking
- Compact size for regulator mounting
- Several pressure ranges available
Specifications
| Part No. |
Port Size |
Pressure Display |
| G49D-6-P02 |
R1/8 |
0～0.2MPa |
| G49D-6-P04 |
R1/8 |
0～0.4MPa |
| G49D-6-P10-P70 |
R1/8 |
0～1.0MPa |
| G49D-8-P04 |
R1/4 |
0～0.4MPa |
| G49D-8-P10 |
R1/4 |
0～1.0MPa |
How to Order
Choose dial size, pressure range and connection thread. Please confirm the full part number and options against the CKD catalog; contact us if you need help identifying the right model.

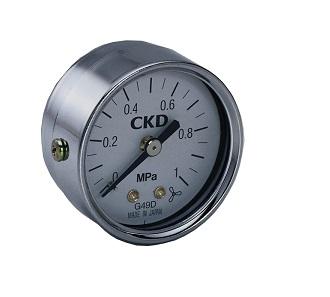

Product image is representative of the CKD series; appearance varies by size and model.
About CKD
CKD Corporation is a Japanese manufacturer of pneumatic and fluid control components, including solenoid valves, process valves, air cylinders, air preparation units (FRL), fittings and flow control devices.
Ordering & Shipping
- Genuine CKD product sourced through Korean distribution
- Ships worldwide from South Korea by FedEx International Priority Express
- Lead time varies by model; please inquire for exact delivery
- Import duties and taxes are payable by the recipient
- Bulk and trade pricing available on request
