Description
CKD MSDG-L-12-10-F2V-D — MSD Series Small Compact Cylinder (MSDG~), genuine CKD product.
Overview
The CKD MSD series is a small, compact pneumatic cylinder for short-stroke pushing and clamping. The MSDG variant includes a guided rod arrangement to resist rotation. It is used in small assembly machines and fixtures. Its short overall length allows installation where standard cylinders will not fit, and auto switches can be added for position feedback.
Key Features
- Compact body for tight spaces
- Short stroke design
- Non-rotating guided variant
- Cylinder switch options
Specifications
| Part No. |
Stroke (mm) |
Tube Inner Diameter (Ømm) |
Operation Type |
| MSDG-L-12-10-F2V-D |
10 |
12 |
Double acting, guide-mounted type, with switch |
How to Order
Specify bore, stroke, mounting and switch requirements. Please confirm the full part number and options against the CKD catalog; contact us if you need help identifying the right model.

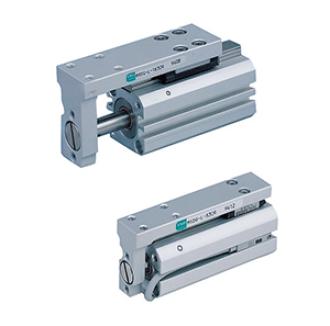

Product image is representative of the CKD series; appearance varies by size and model.
About CKD
CKD Corporation is a Japanese manufacturer of pneumatic and fluid control components, including solenoid valves, process valves, air cylinders, air preparation units (FRL), fittings and flow control devices.
Ordering & Shipping
- Genuine CKD product sourced through Korean distribution
- Ships worldwide from South Korea by FedEx International Priority Express
- Lead time varies by model; please inquire for exact delivery
- Import duties and taxes are payable by the recipient
- Bulk and trade pricing available on request
