Description
CKD MS — MS Series Small Mechanical Valve, genuine CKD product.
Overview
The CKD MS Series small mechanical valve switches air flow by a mechanical actuator such as a roller lever, toggle or plunger. It is used for detecting machine positions, manual control and safety interlocks without electricity. Typical uses include jigs, fixtures and simple pneumatic logic circuits.
Key Features
- Mechanically operated, no power needed
- Several actuator styles available
- Compact body for jigs and fixtures
Specifications
| Part No. |
No. of Ports |
Max. Operating Pressure (MPa) |
Fluid |
Connection Method |
Cross-Sectional Area (㎟) |
Port Size |
Min. Operating Pressure (MPa) |
| MS-00-PB1 |
2 |
0.8 |
Compressed air |
Rc |
2.5 |
1/8 thread |
0 |
| MS-00-RL |
2 |
0.8 |
Compressed air |
Rc |
2.5 |
1/8 thread |
0 |
| MS-00-TG |
2 |
0.8 |
Compressed air |
Rc |
2.5 |
1/8 thread |
0 |
| MS-01-ESP-R |
2 |
0.8 |
Compressed air |
One-touch fitting |
1.6 |
Φ4 |
0 |
| MS-40-SE2 |
- |
- |
- |
One-touch fitting |
- |
Φ4 |
- |
How to Order
Choose the actuator type, port size and normally open or closed function. Please confirm the full part number and options against the CKD catalog; contact us if you need help identifying the right model.

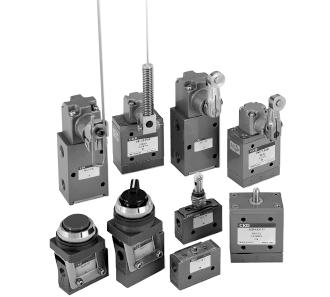

Product image is representative of the CKD series; appearance varies by size and model.
About CKD
CKD Corporation is a Japanese manufacturer of pneumatic and fluid control components, including solenoid valves, process valves, air cylinders, air preparation units (FRL), fittings and flow control devices.
Ordering & Shipping
- Genuine CKD product sourced through Korean distribution
- Ships worldwide from South Korea by FedEx International Priority Express
- Lead time varies by model; please inquire for exact delivery
- Import duties and taxes are payable by the recipient
- Bulk and trade pricing available on request
